4 New Stationary
Engines Built This Year
2025

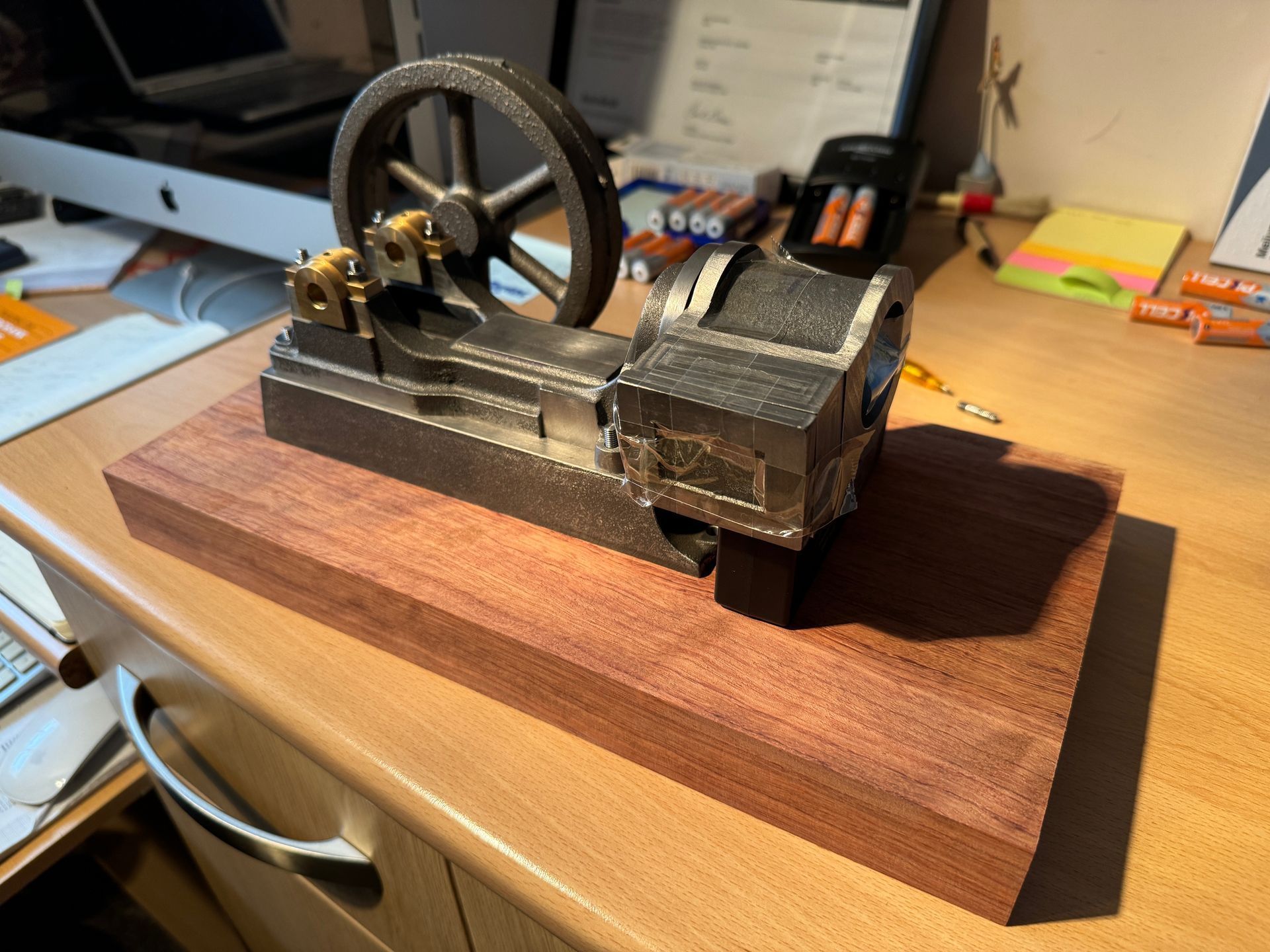

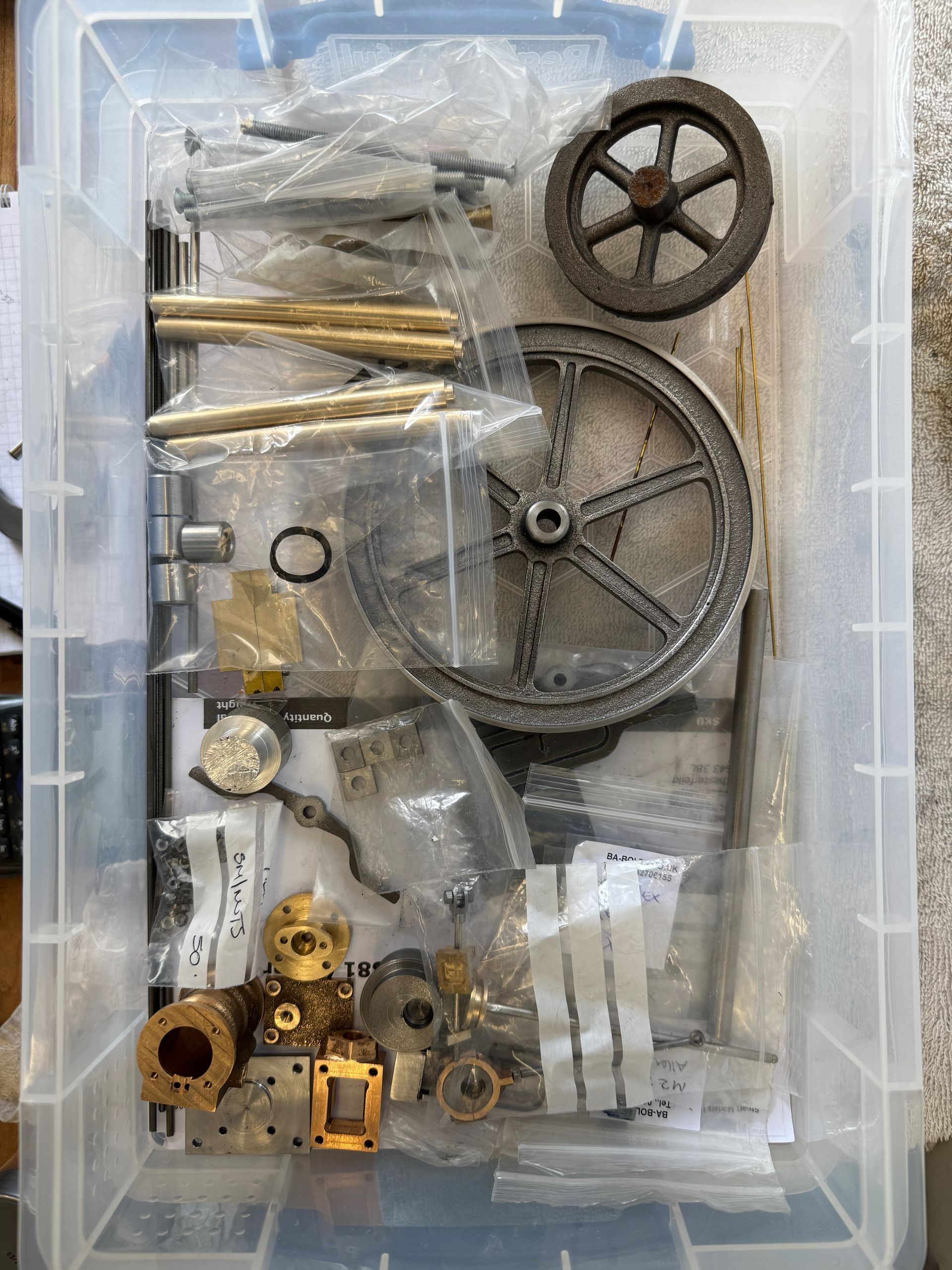

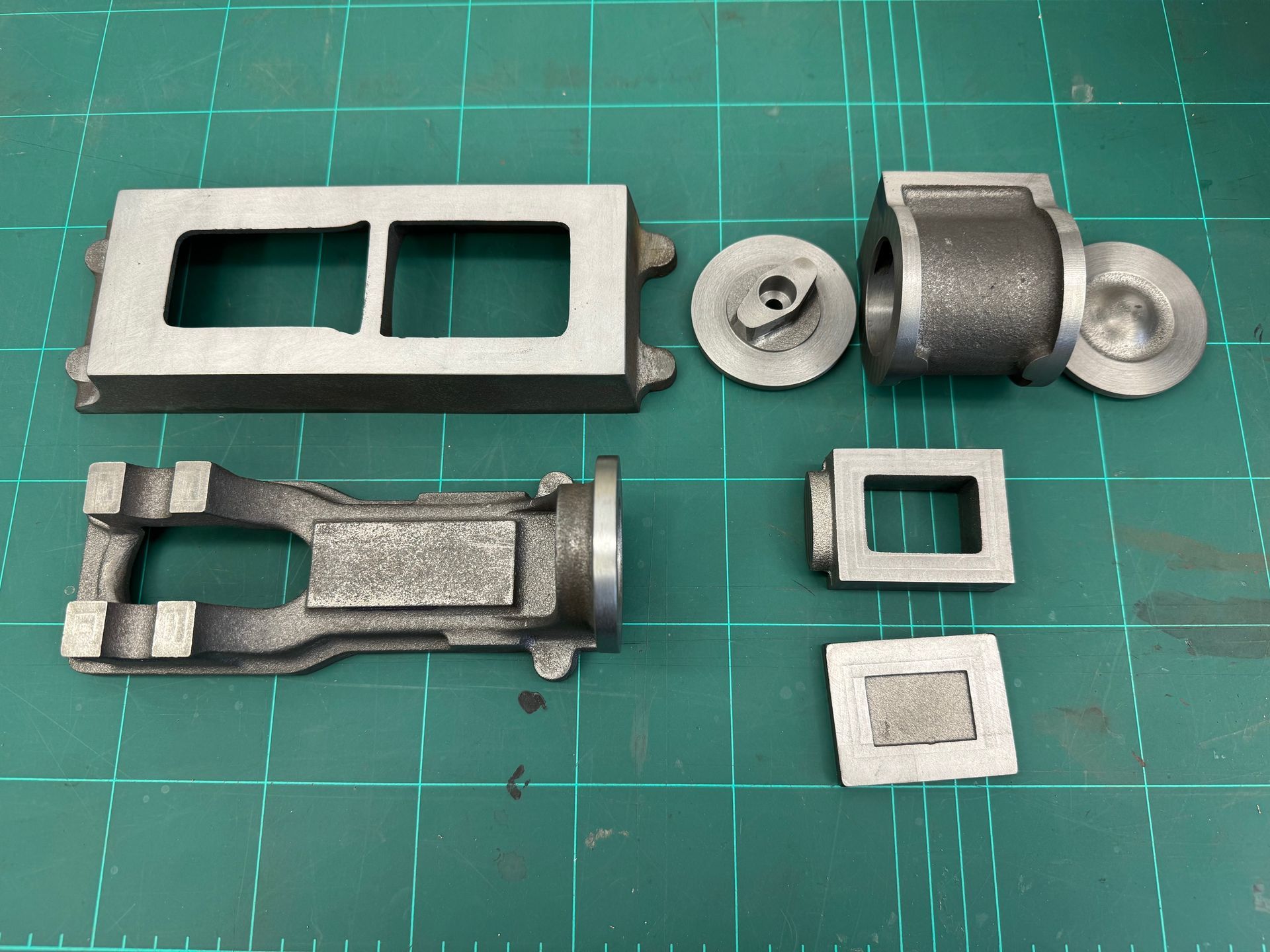

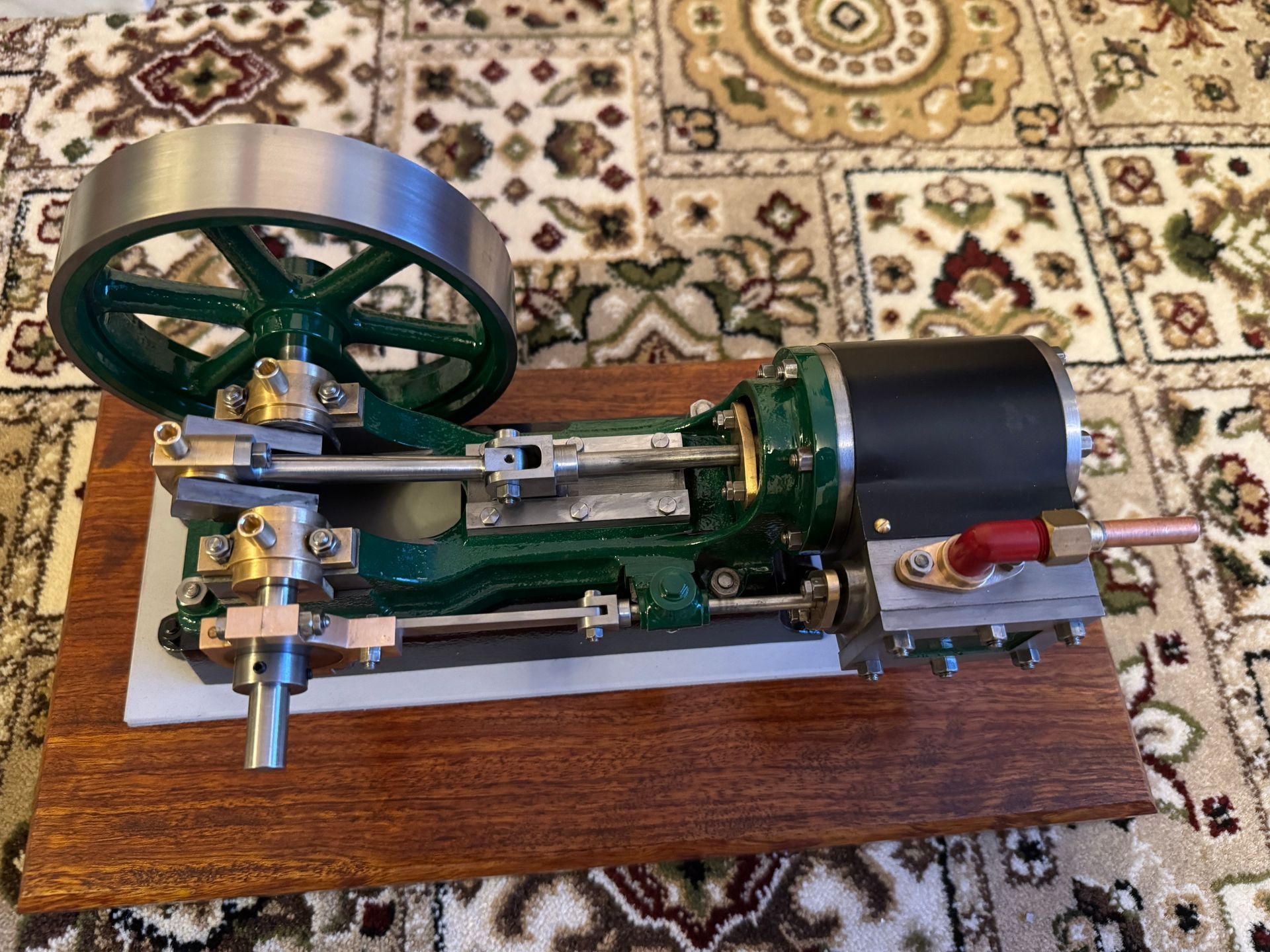

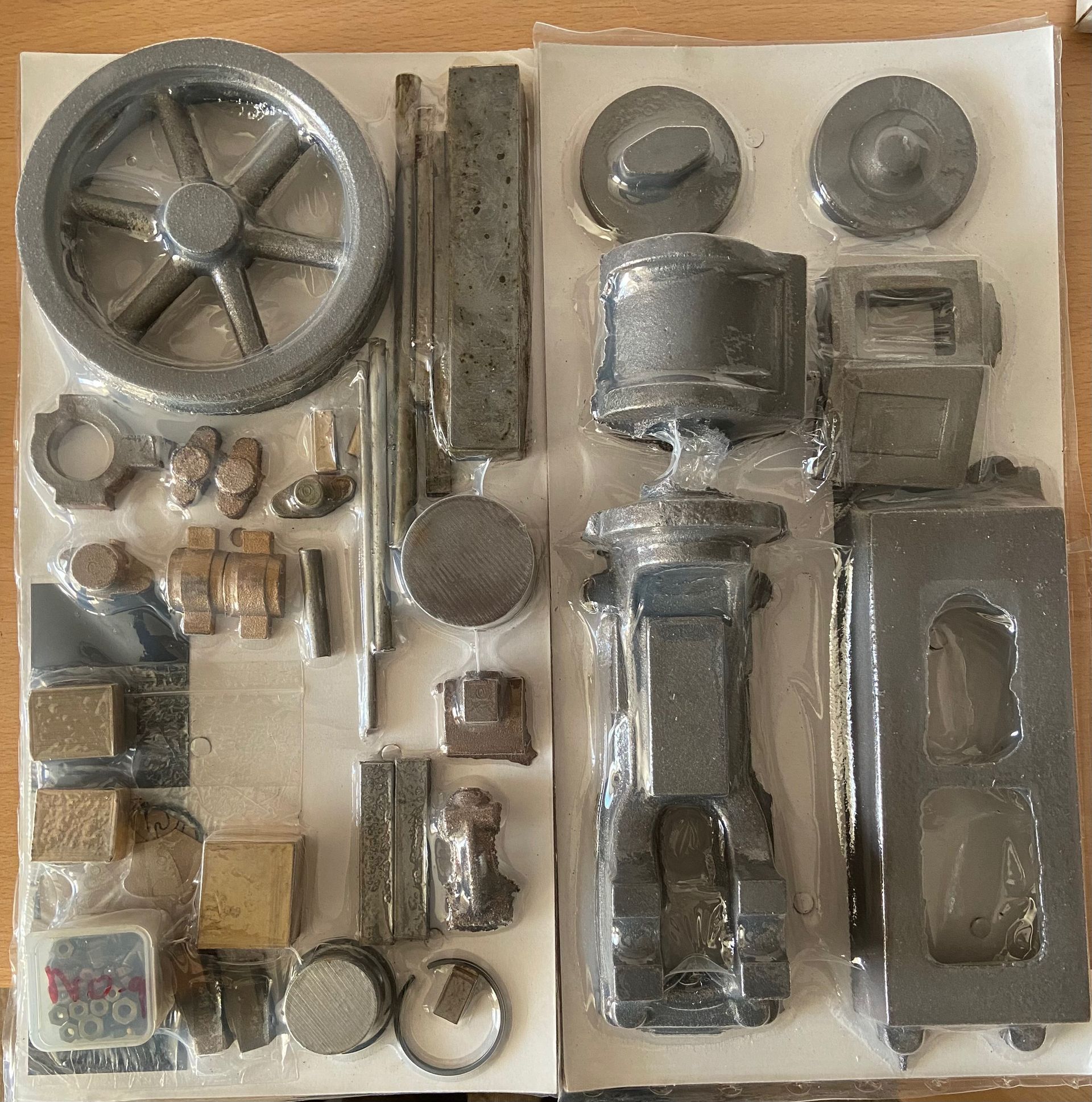

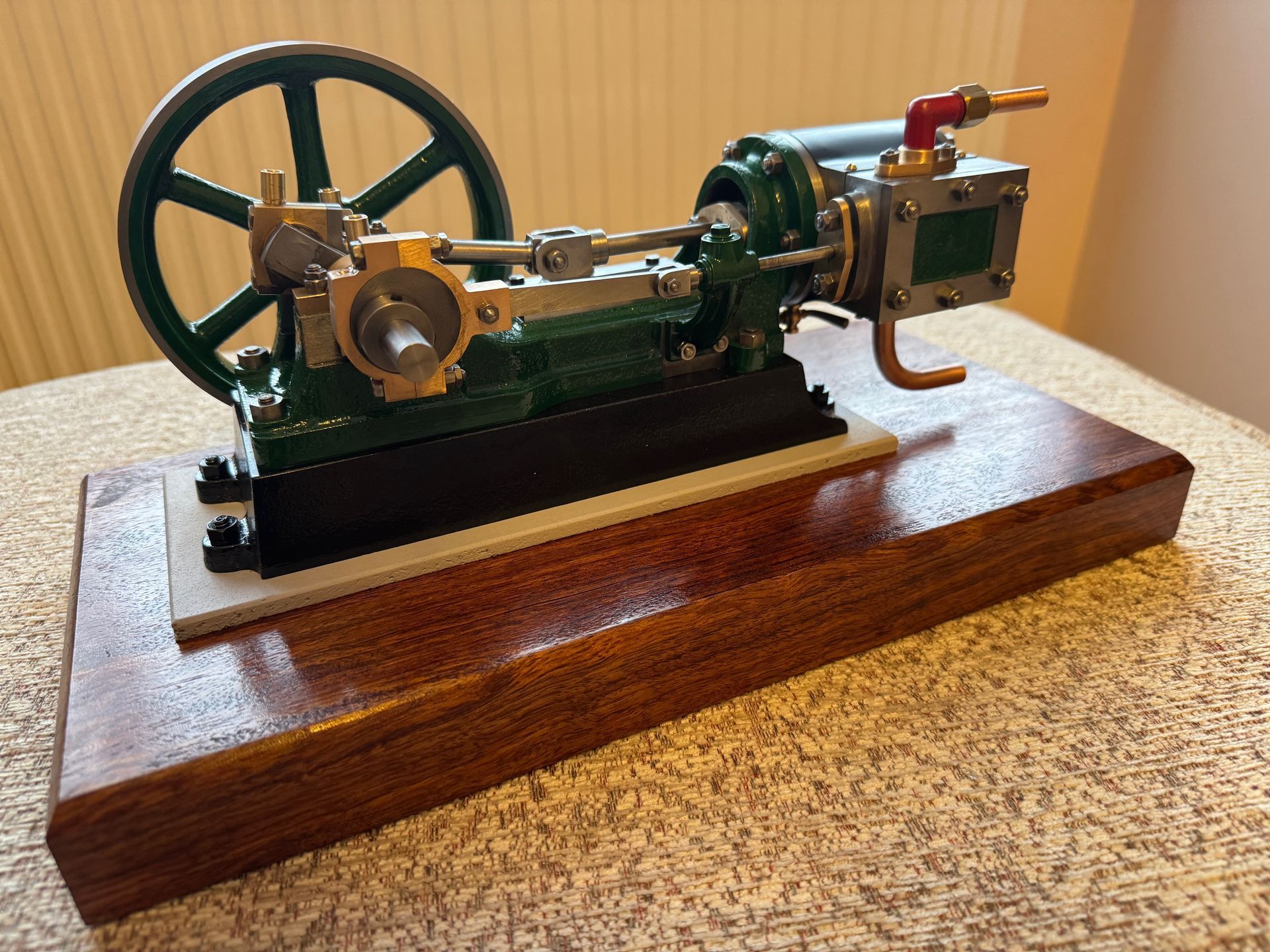

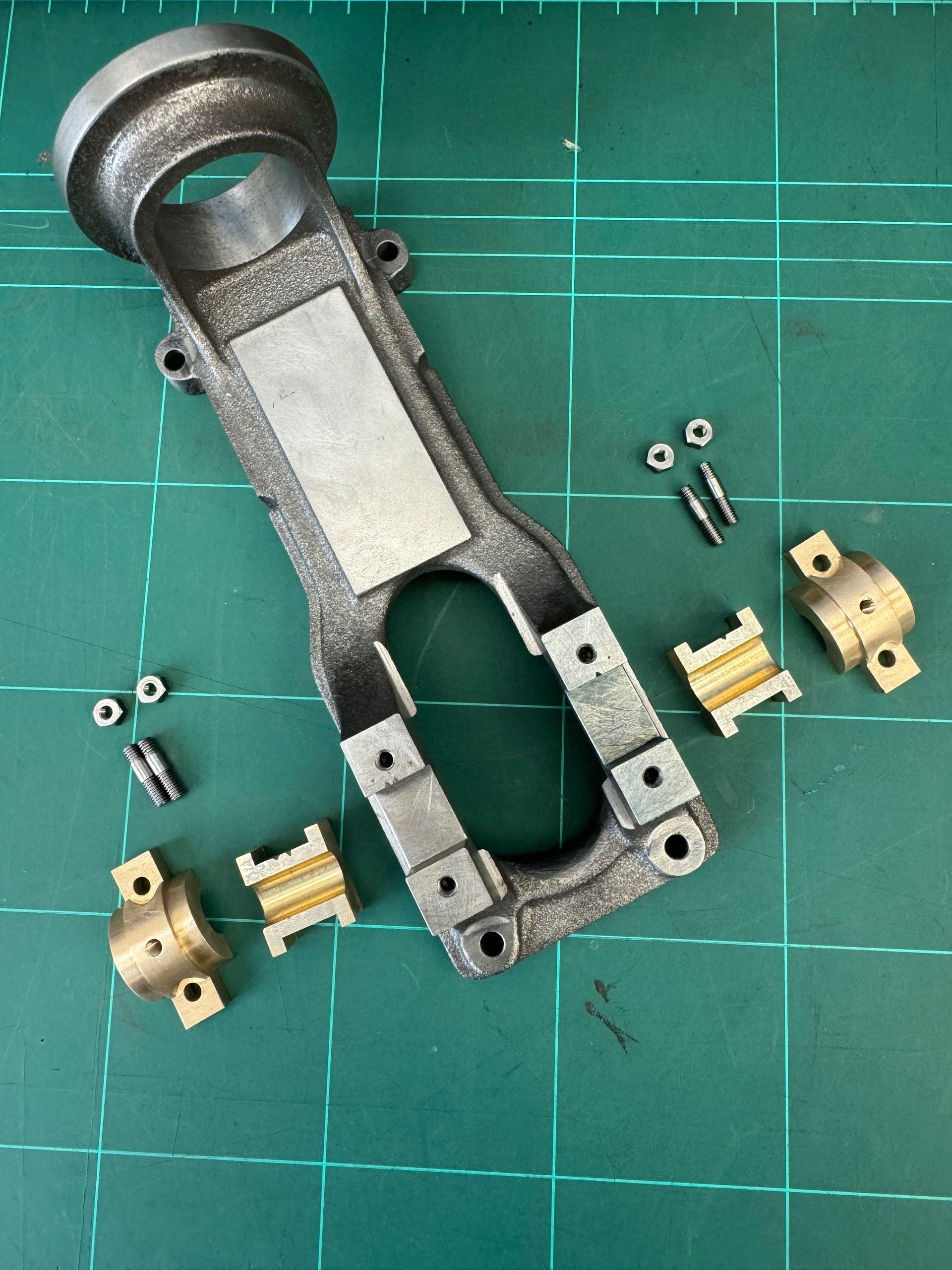

Stuart No.9 Length: 11 Inches. Flywheel Diameter: 5 Inches. Cylinder Bore: 1 1/2 Inches. Cylinder Stroke: 1 1/2 Inches.

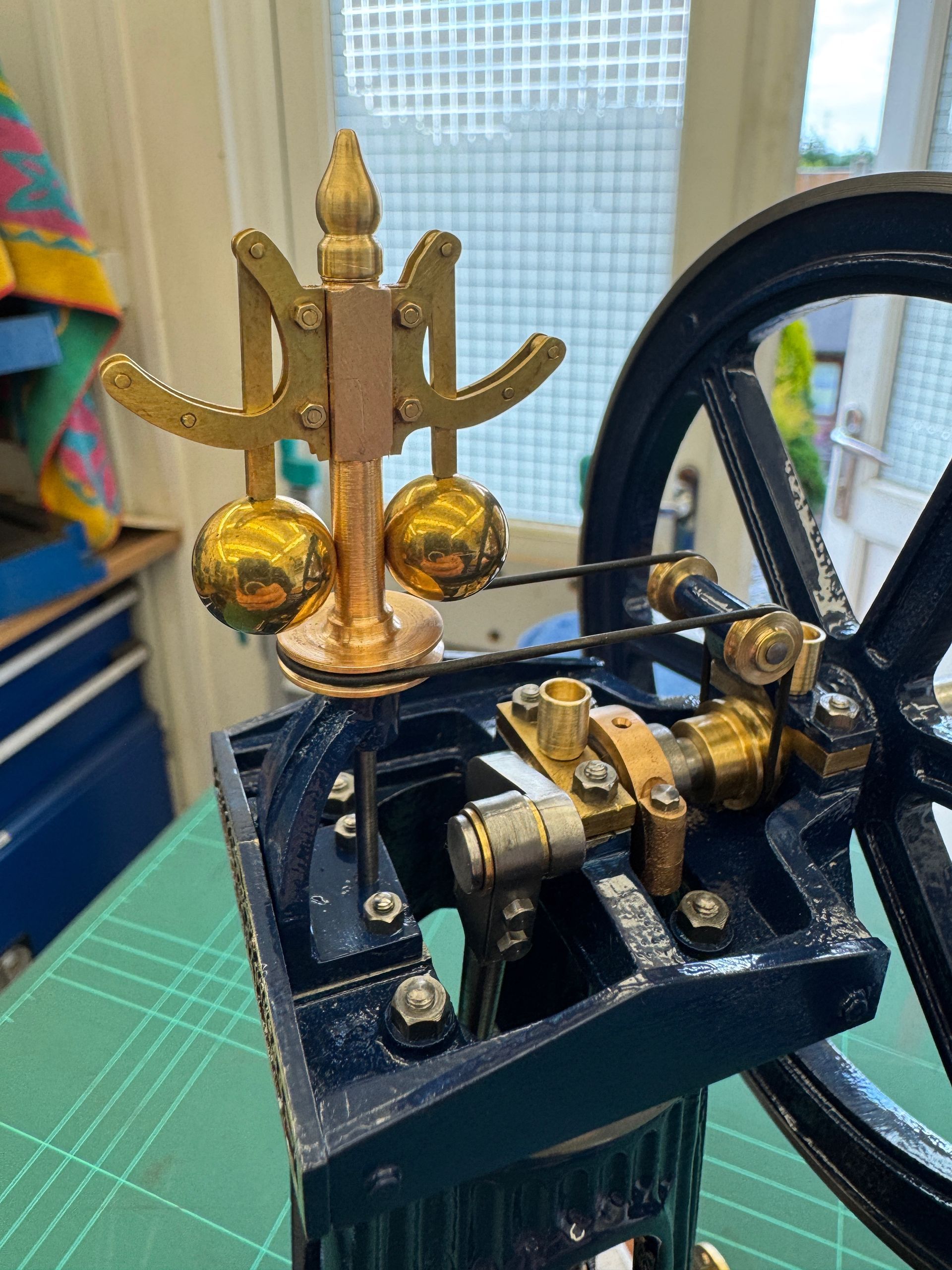

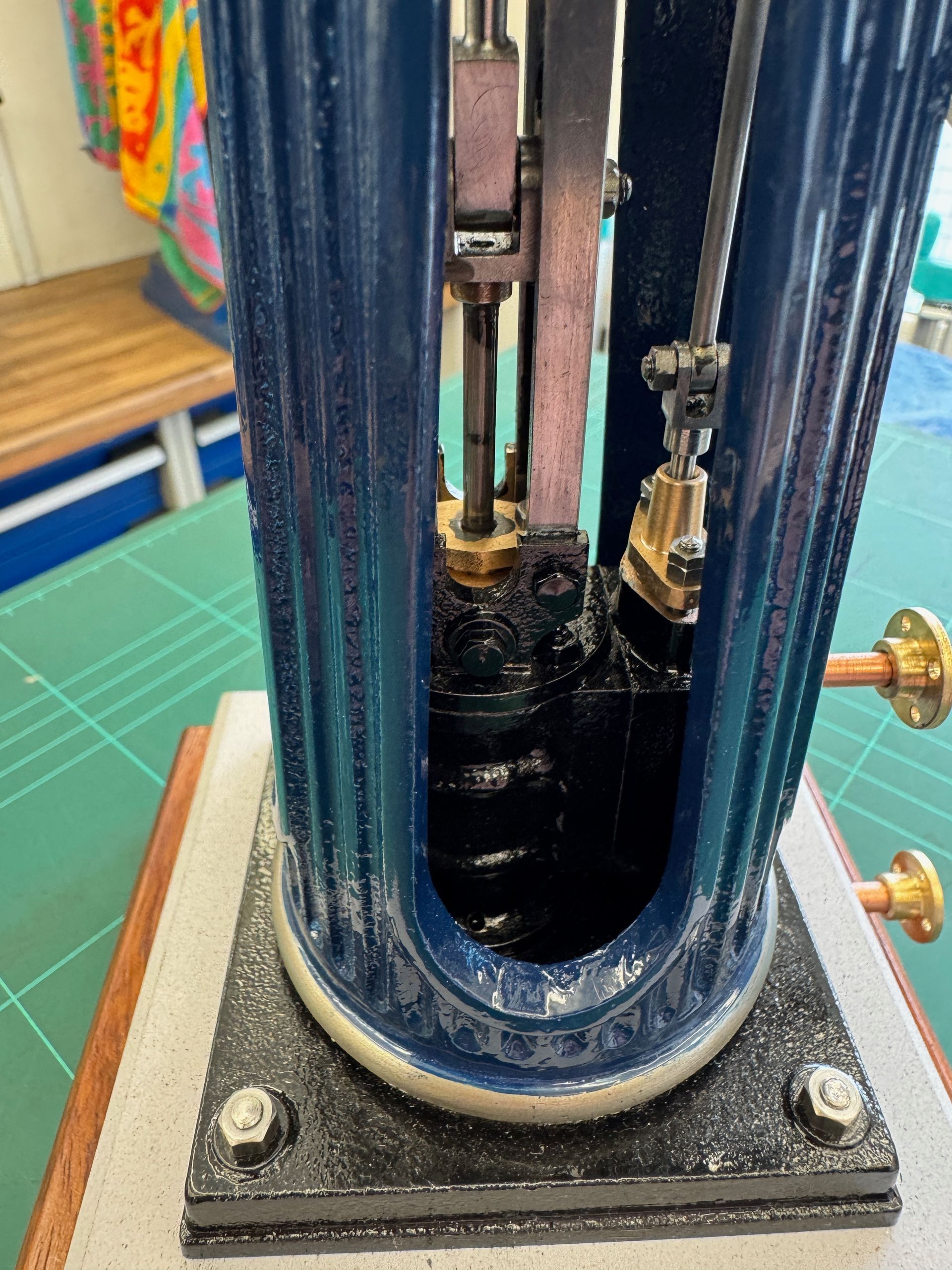

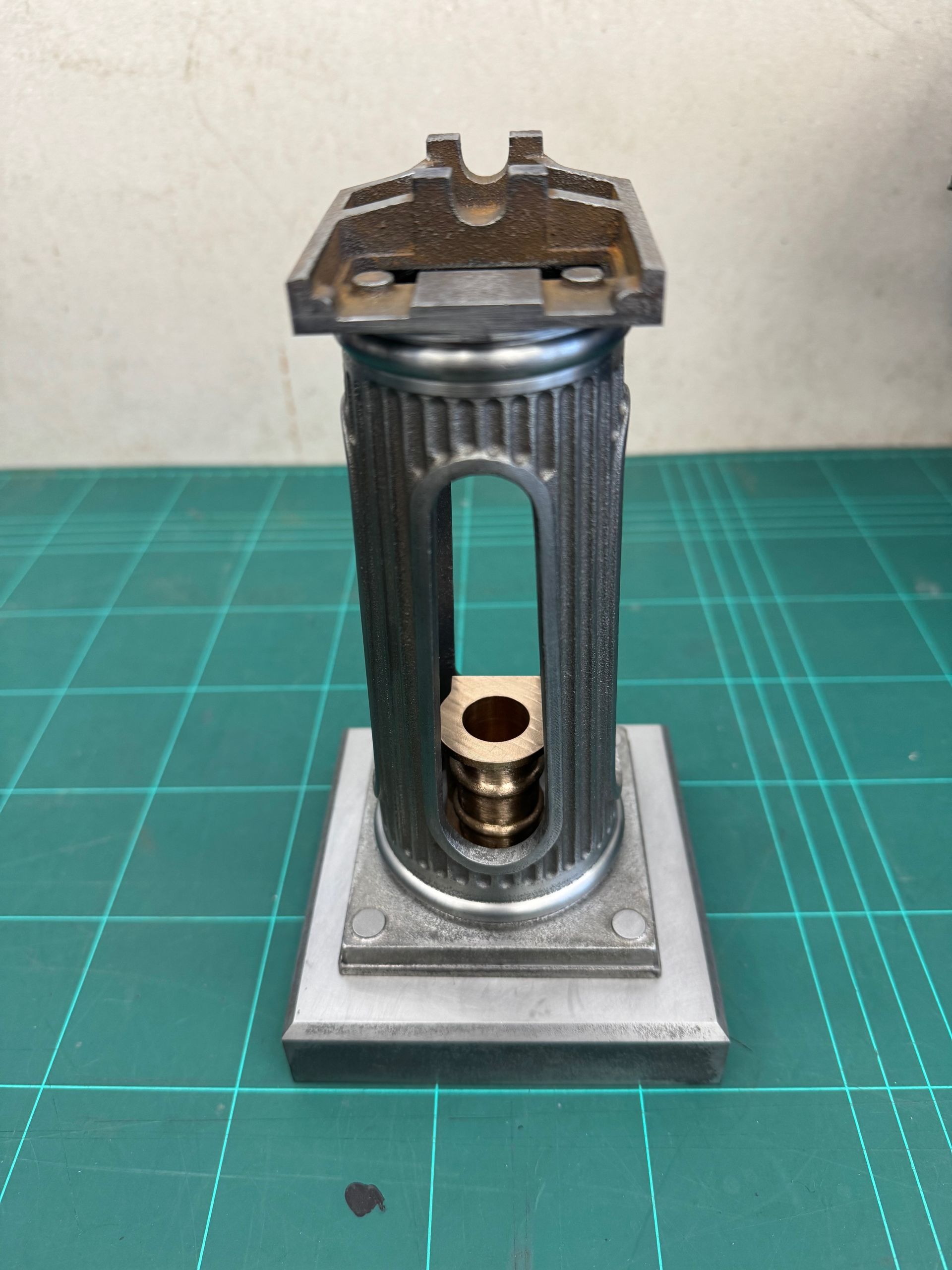

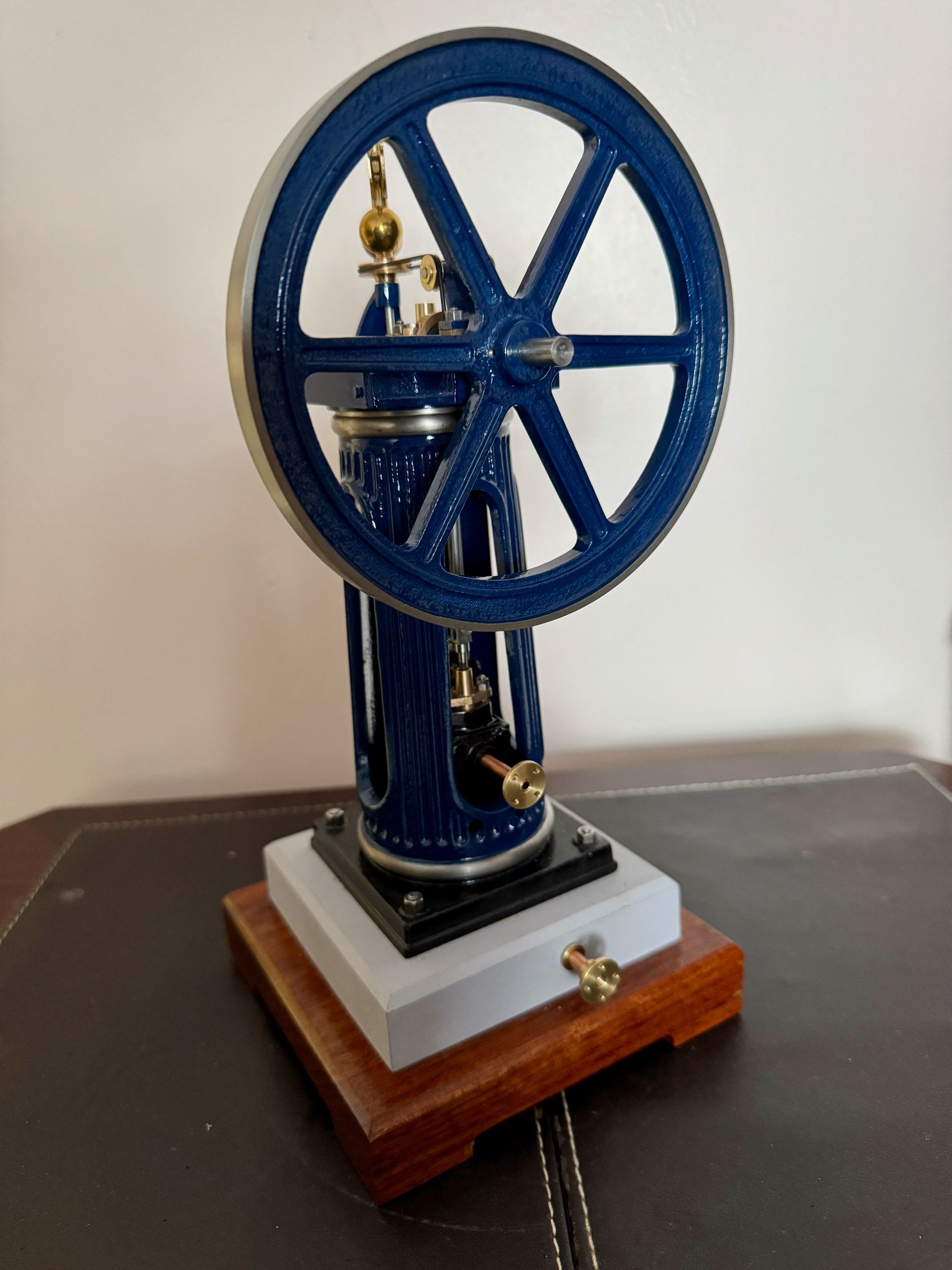

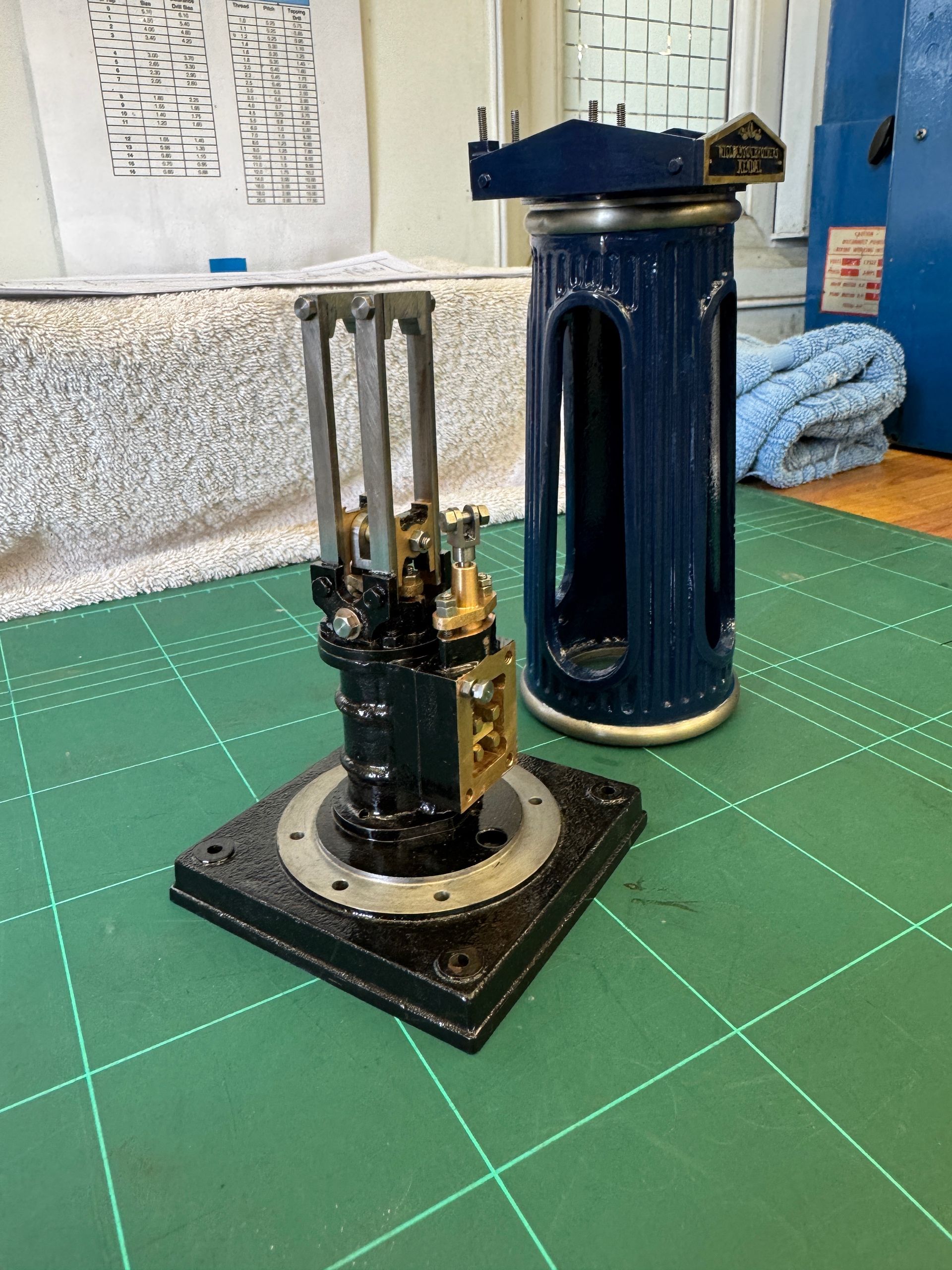

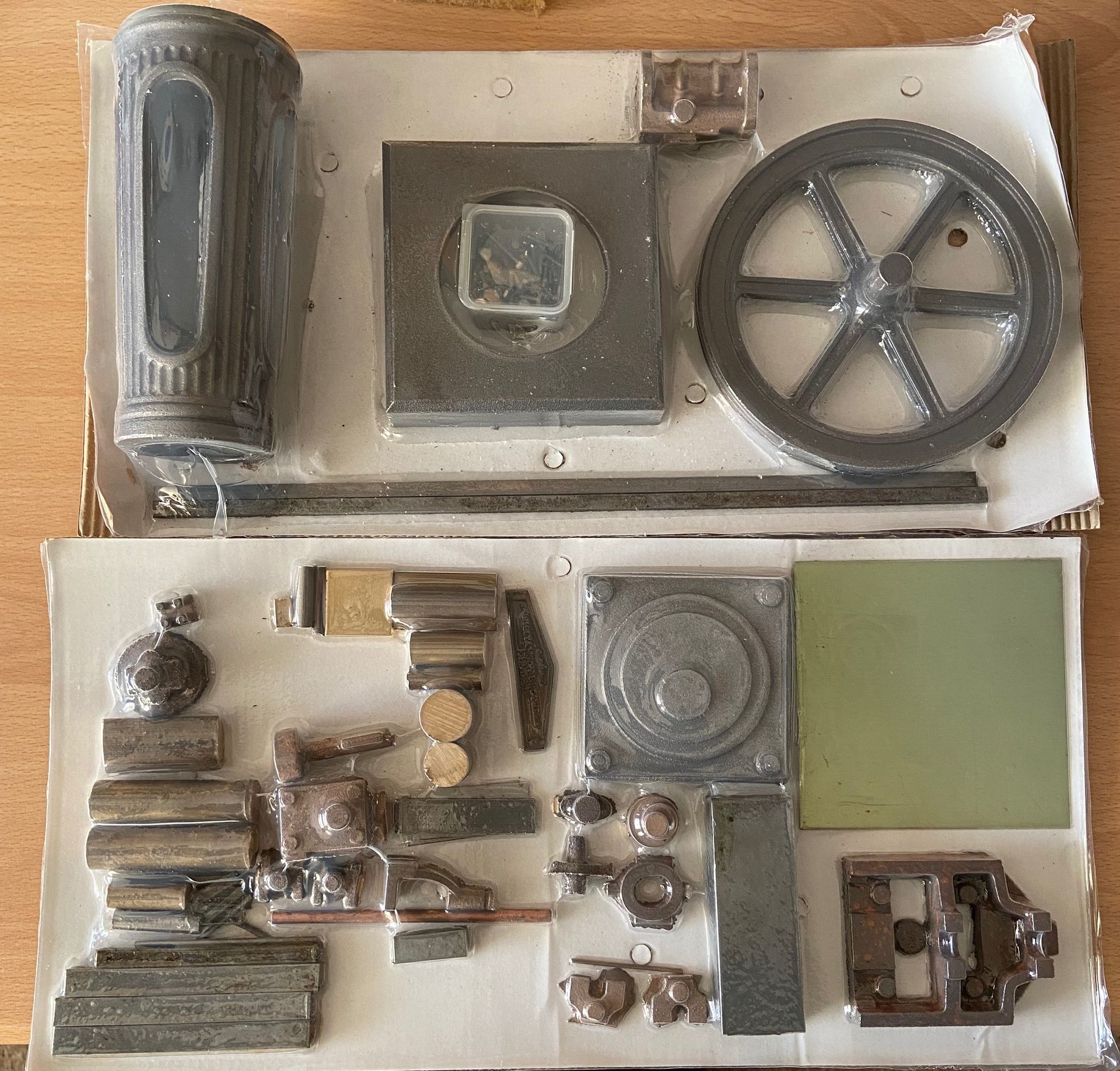

Williamson Engine Height: 11 inch Flywheel: 5 1/2 inch Bore: 5/8 inch Stroke: 1 1/8 inch

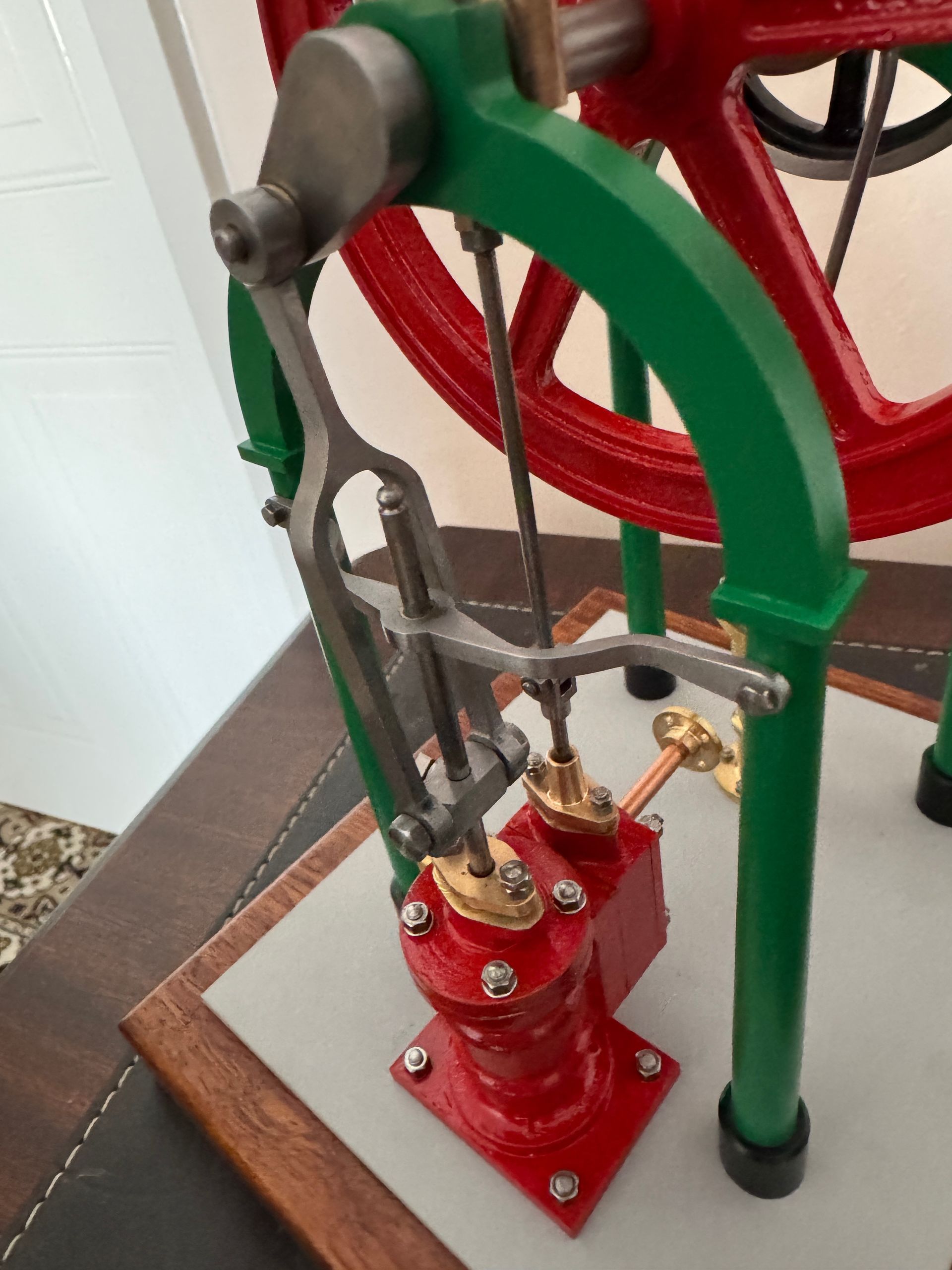

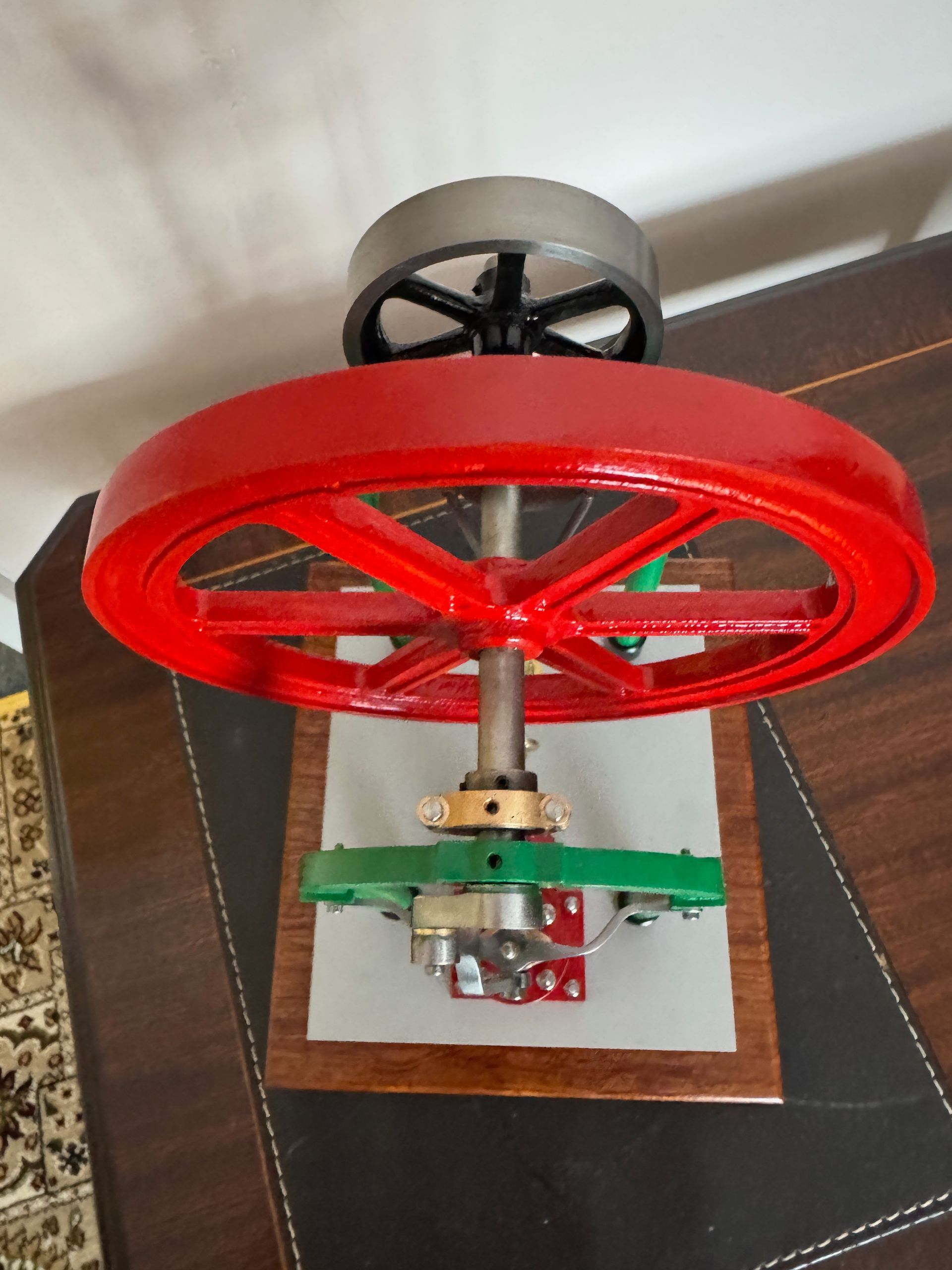

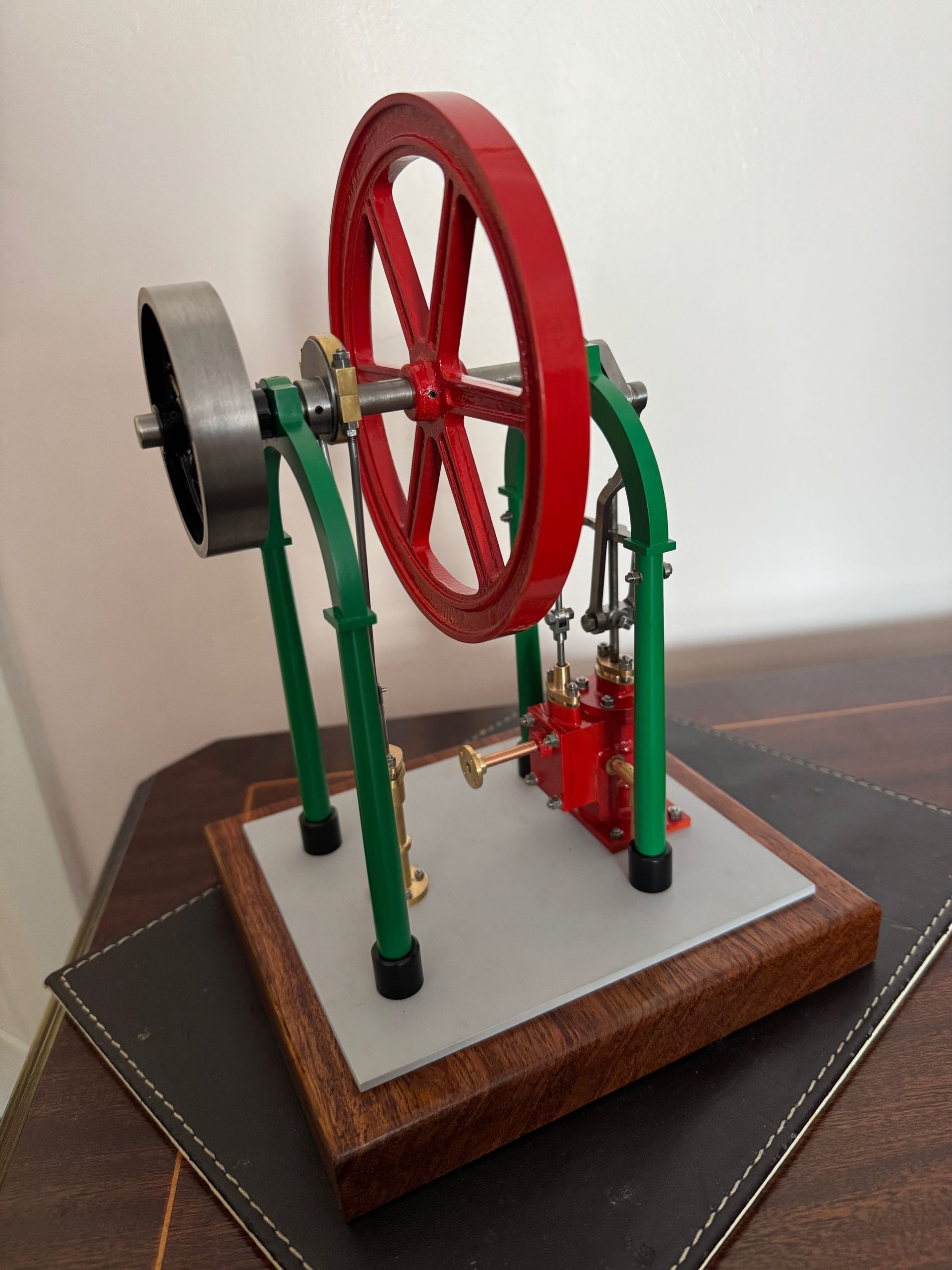

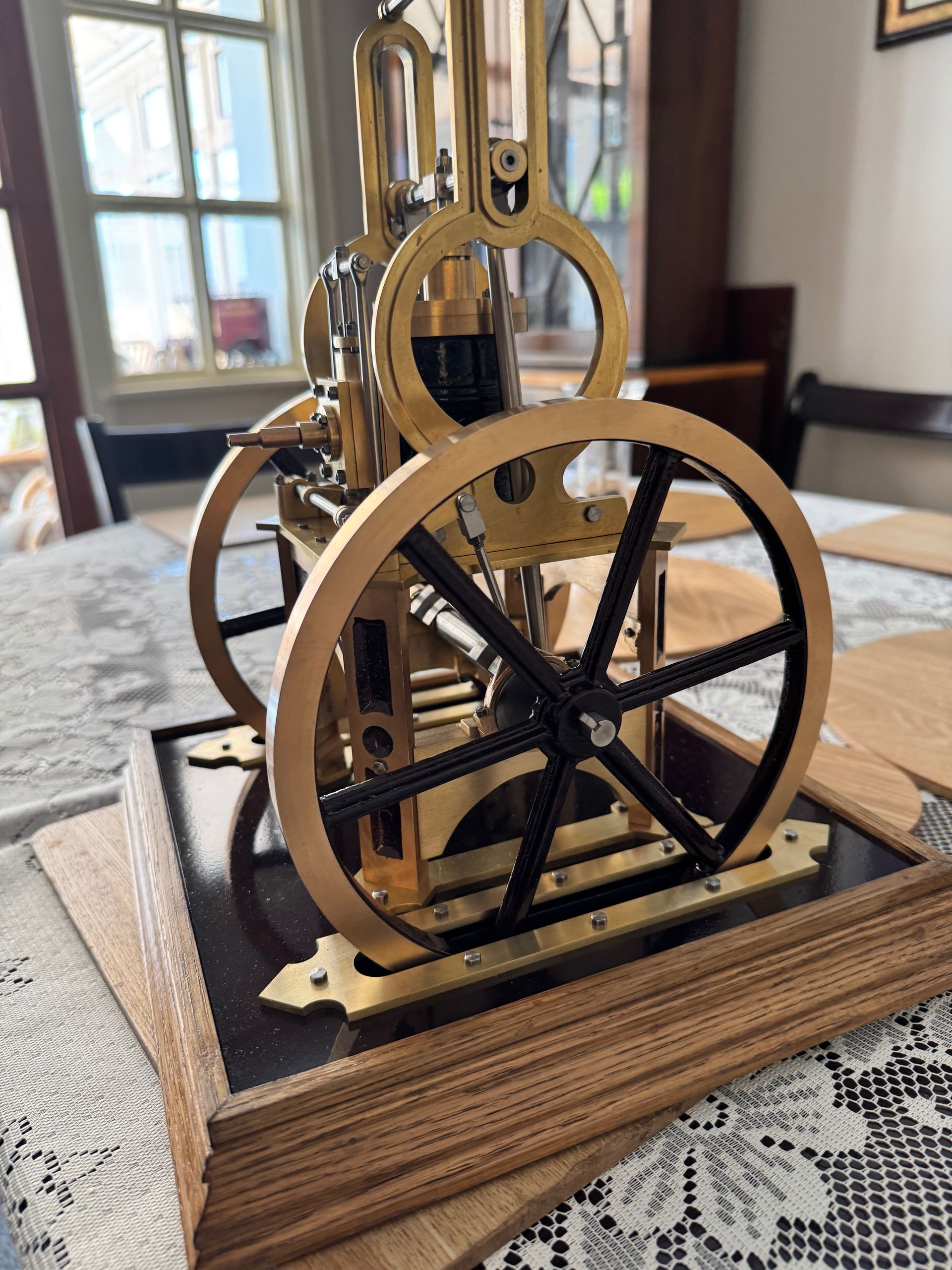

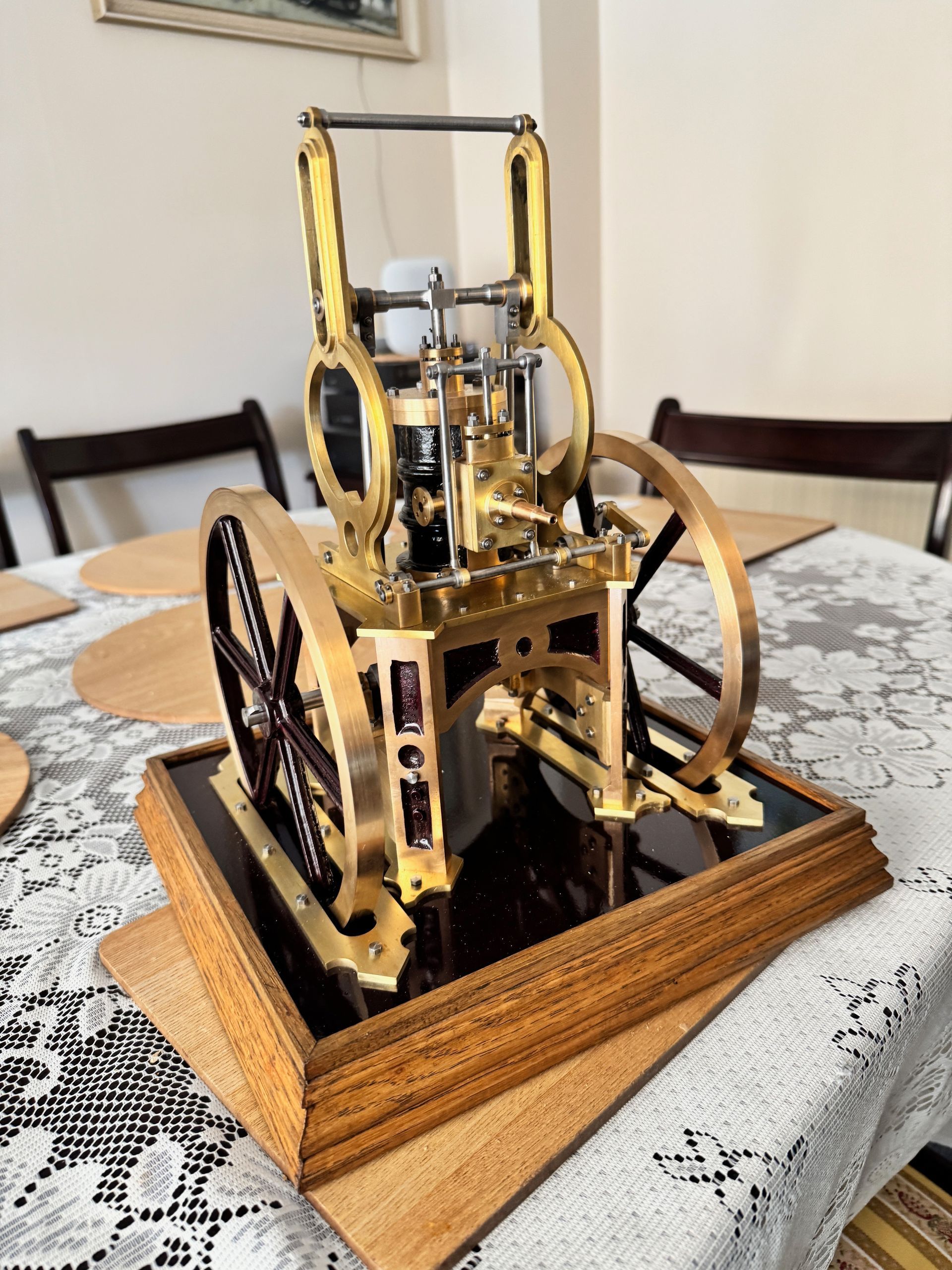

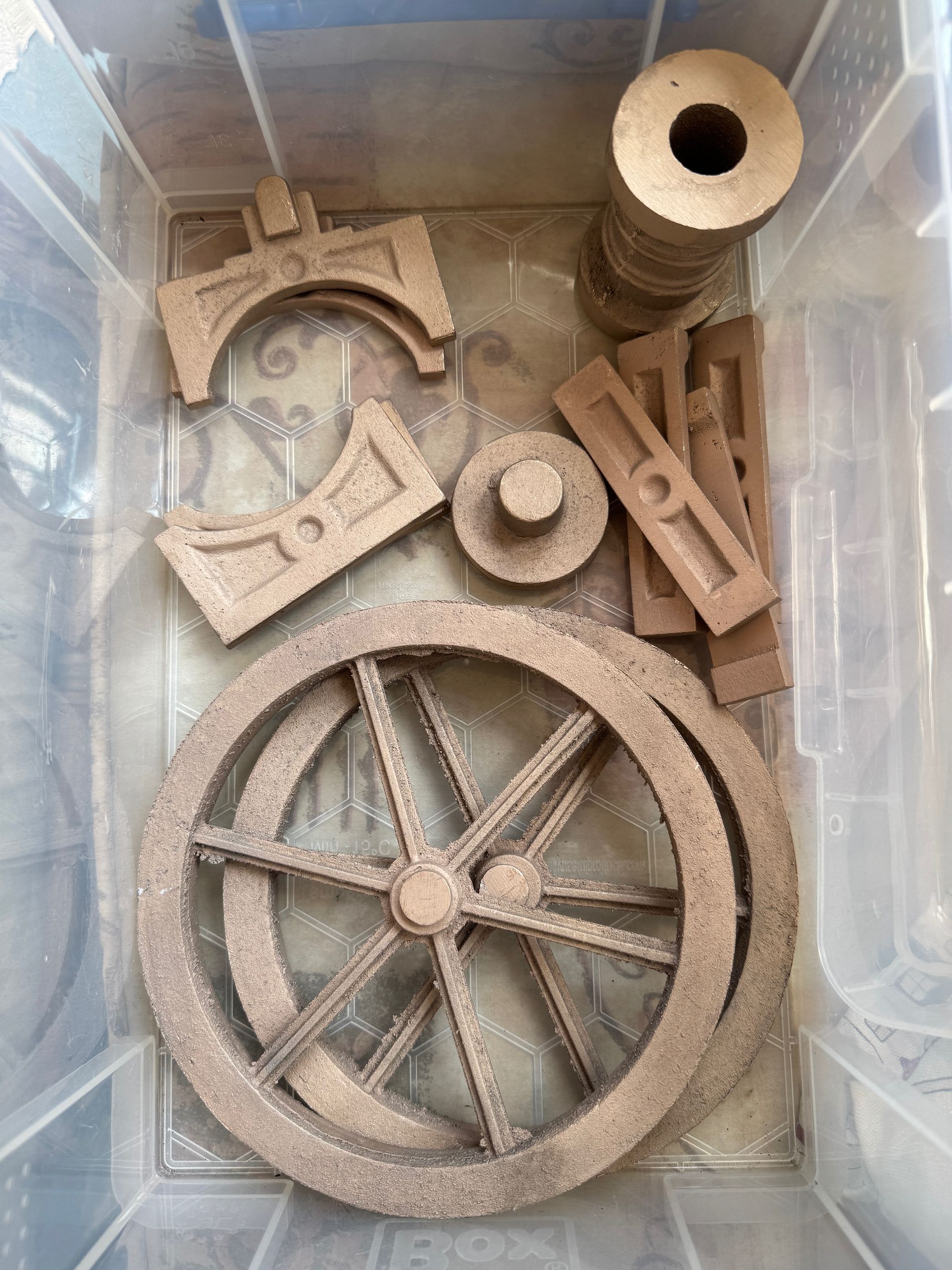

Tubal Cain Georgina uses some Williamson castings

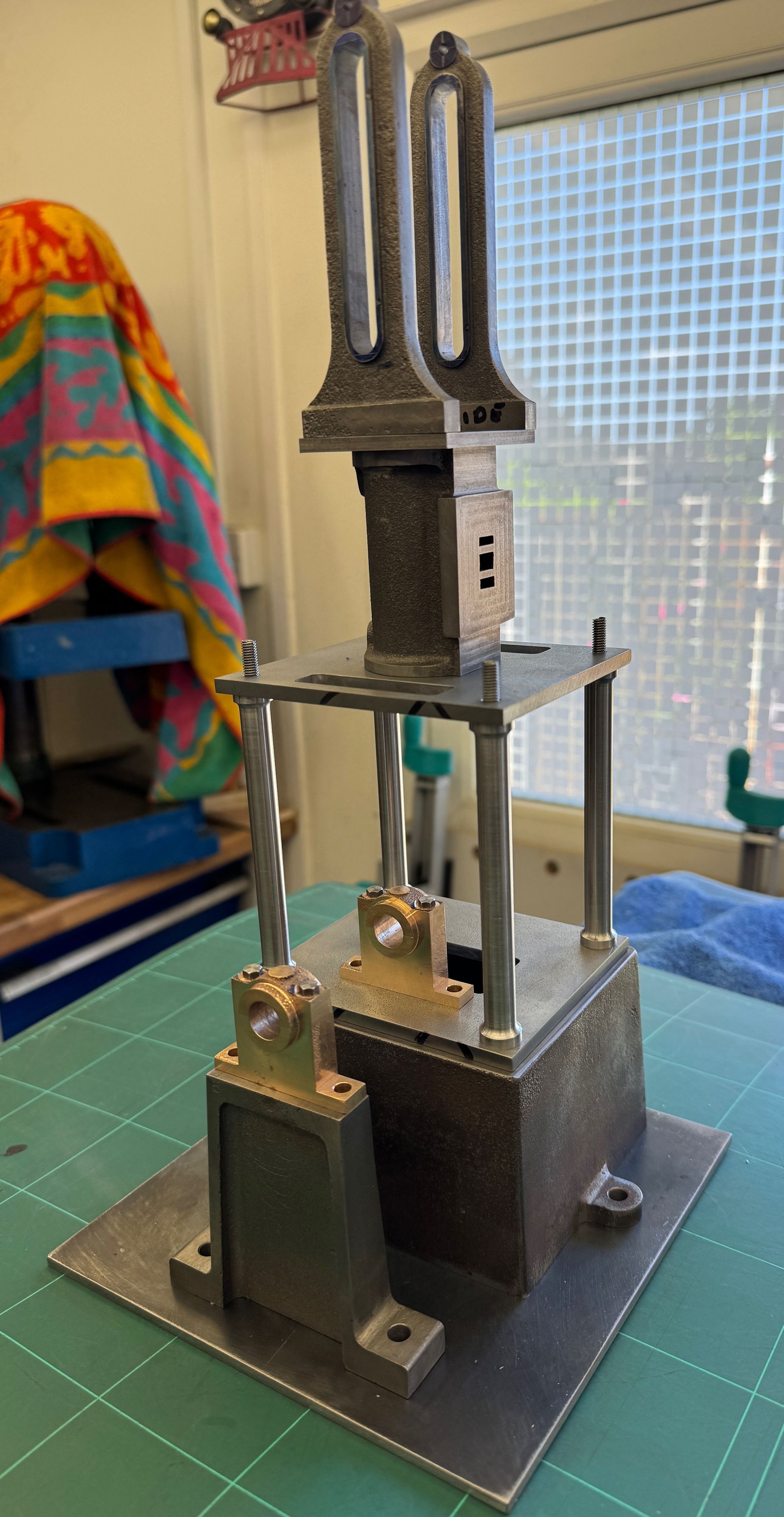

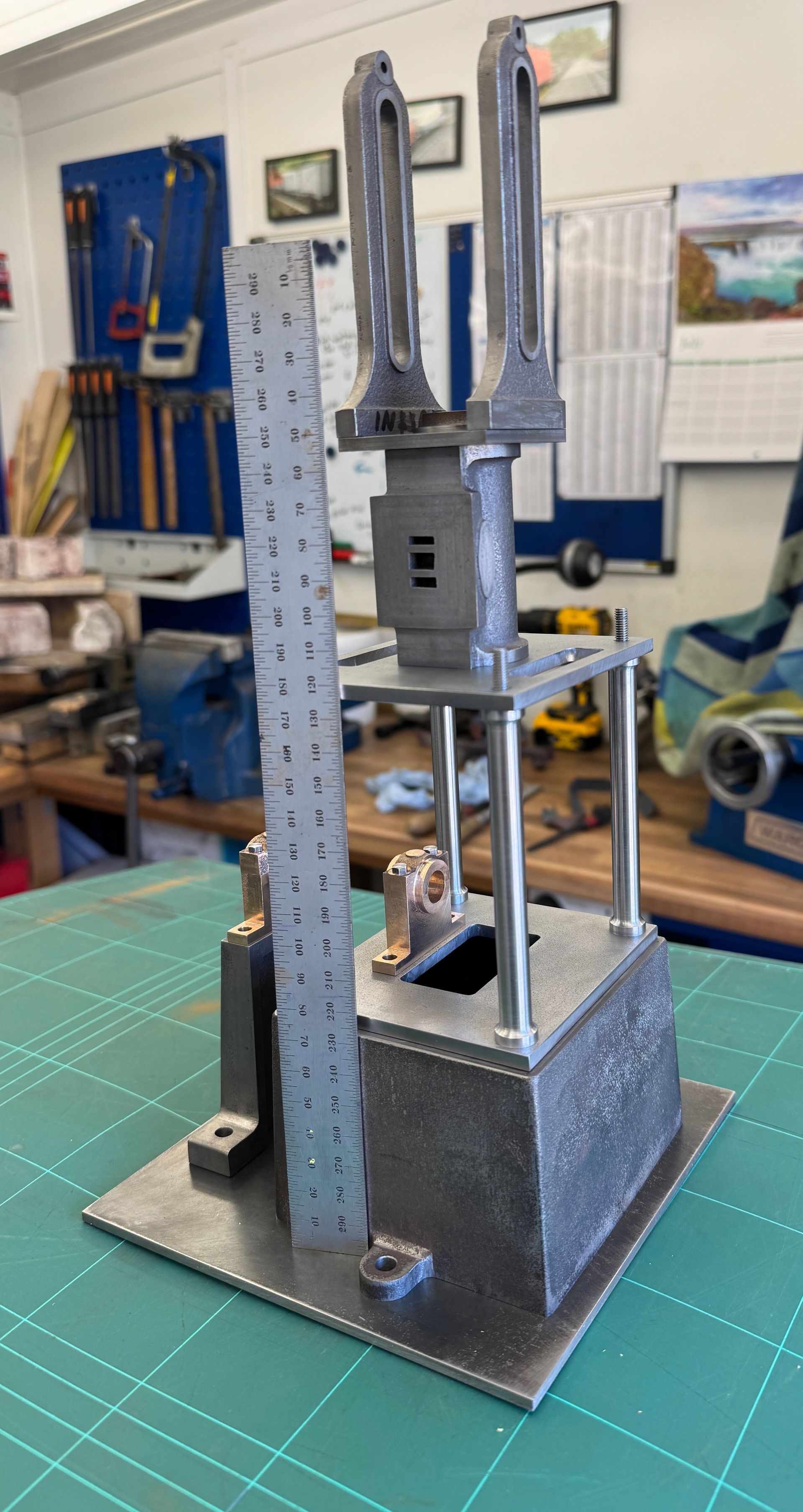

Stuart James Coombes Table Engine Height: 14 1/2 Inches. Flywheel Diameter: 7 Inches. Cylinder Bore: 1 Inch Diameter. Cylinder Stroke: 2 Inches
Stationary Engines

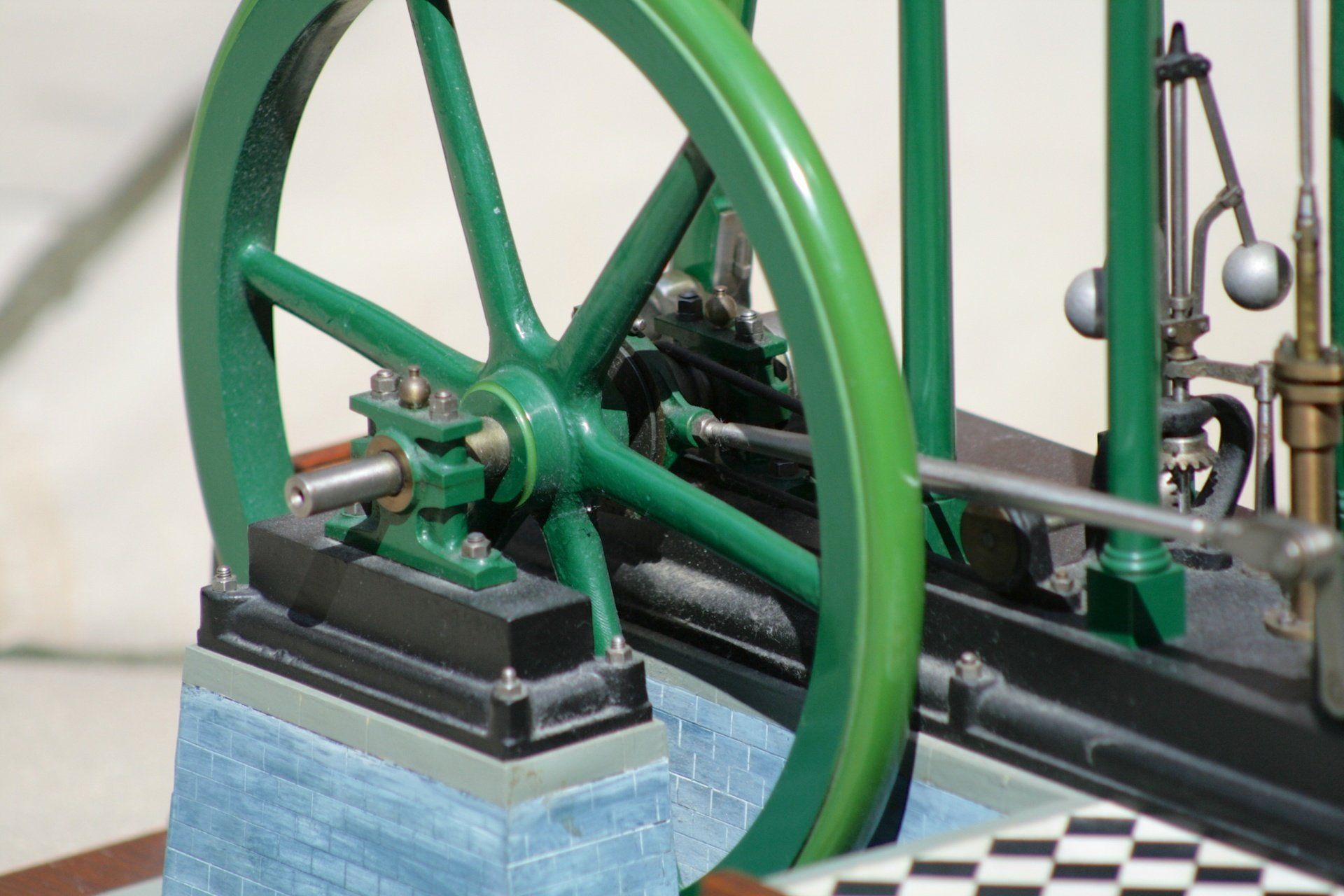

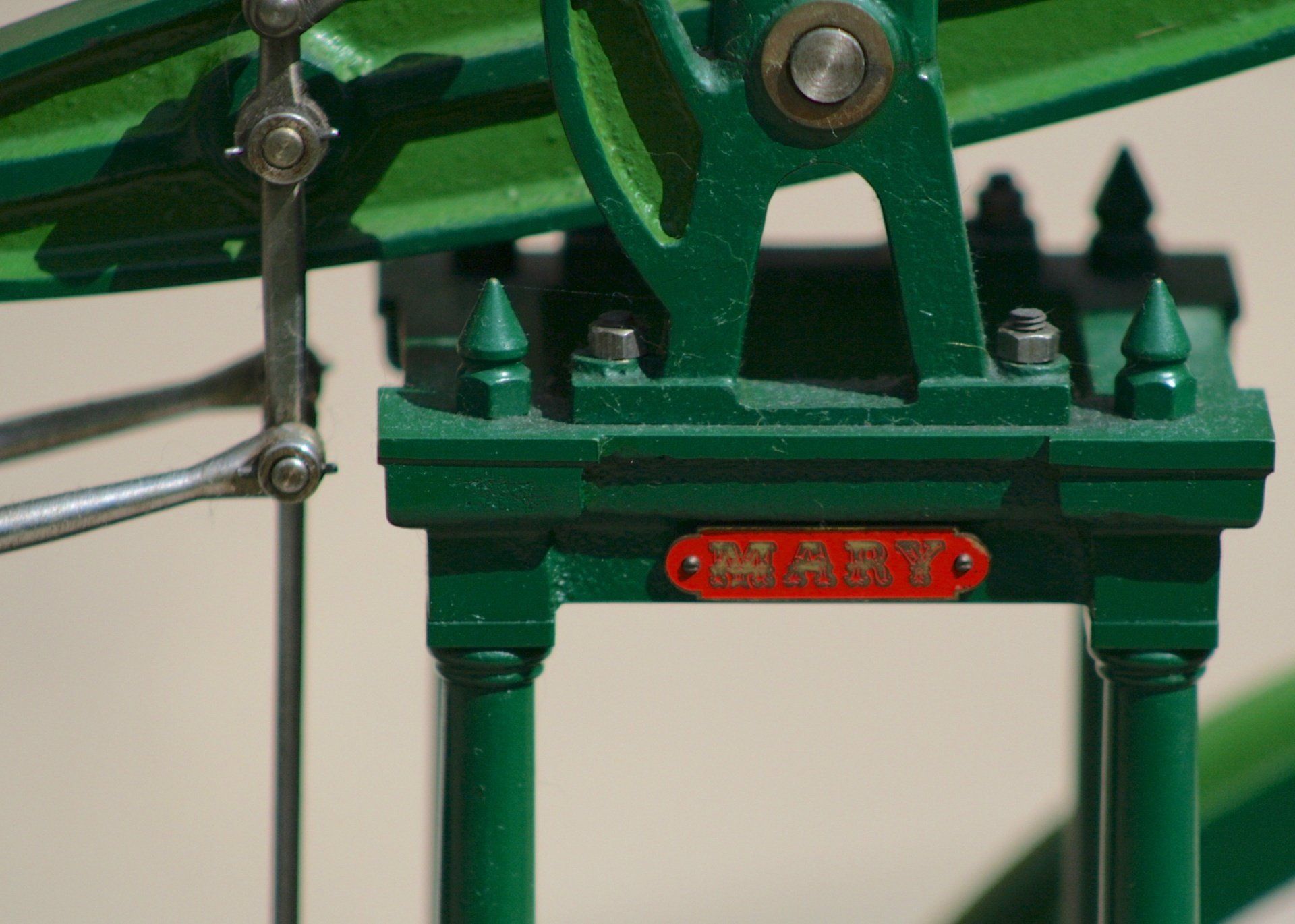

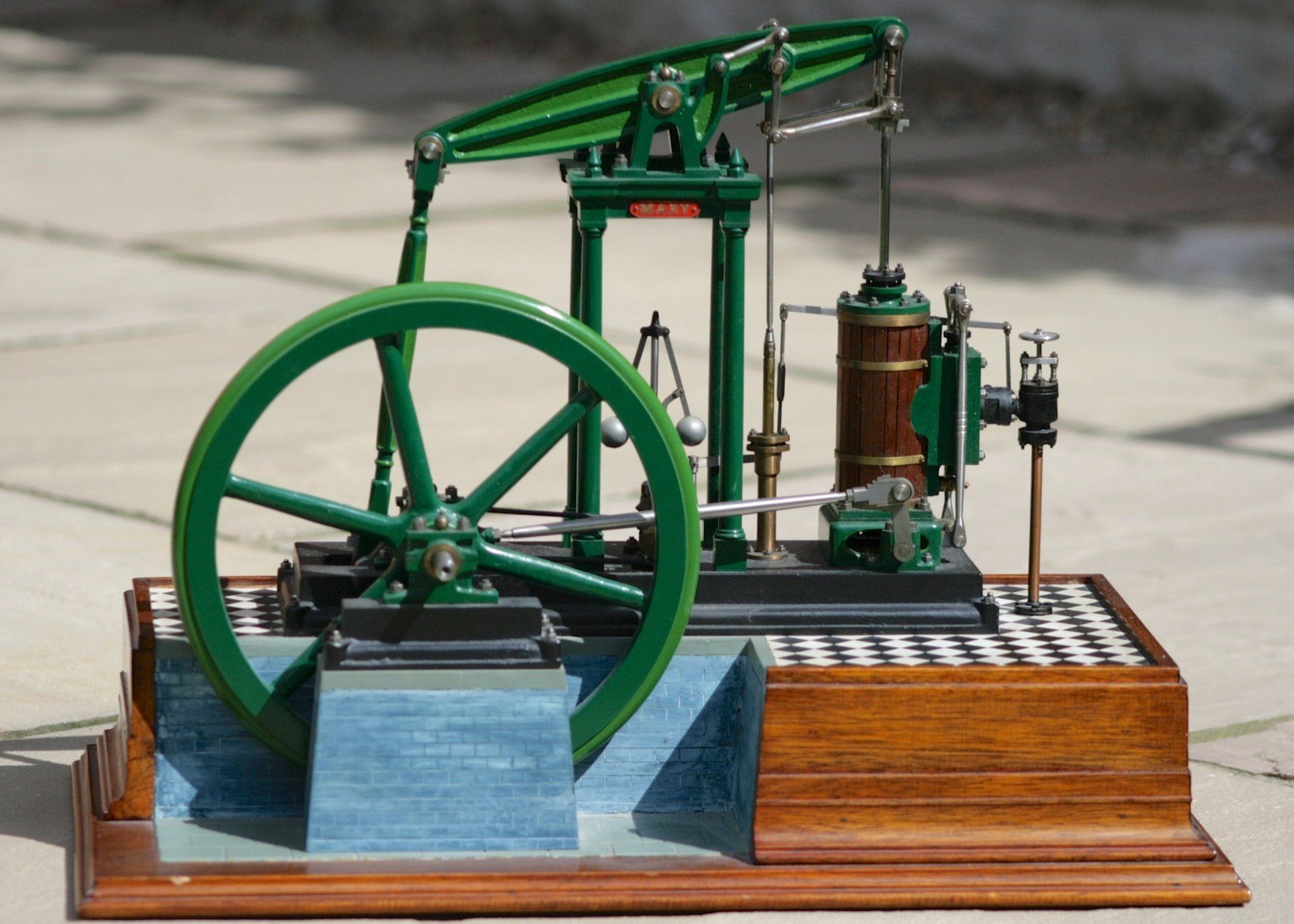

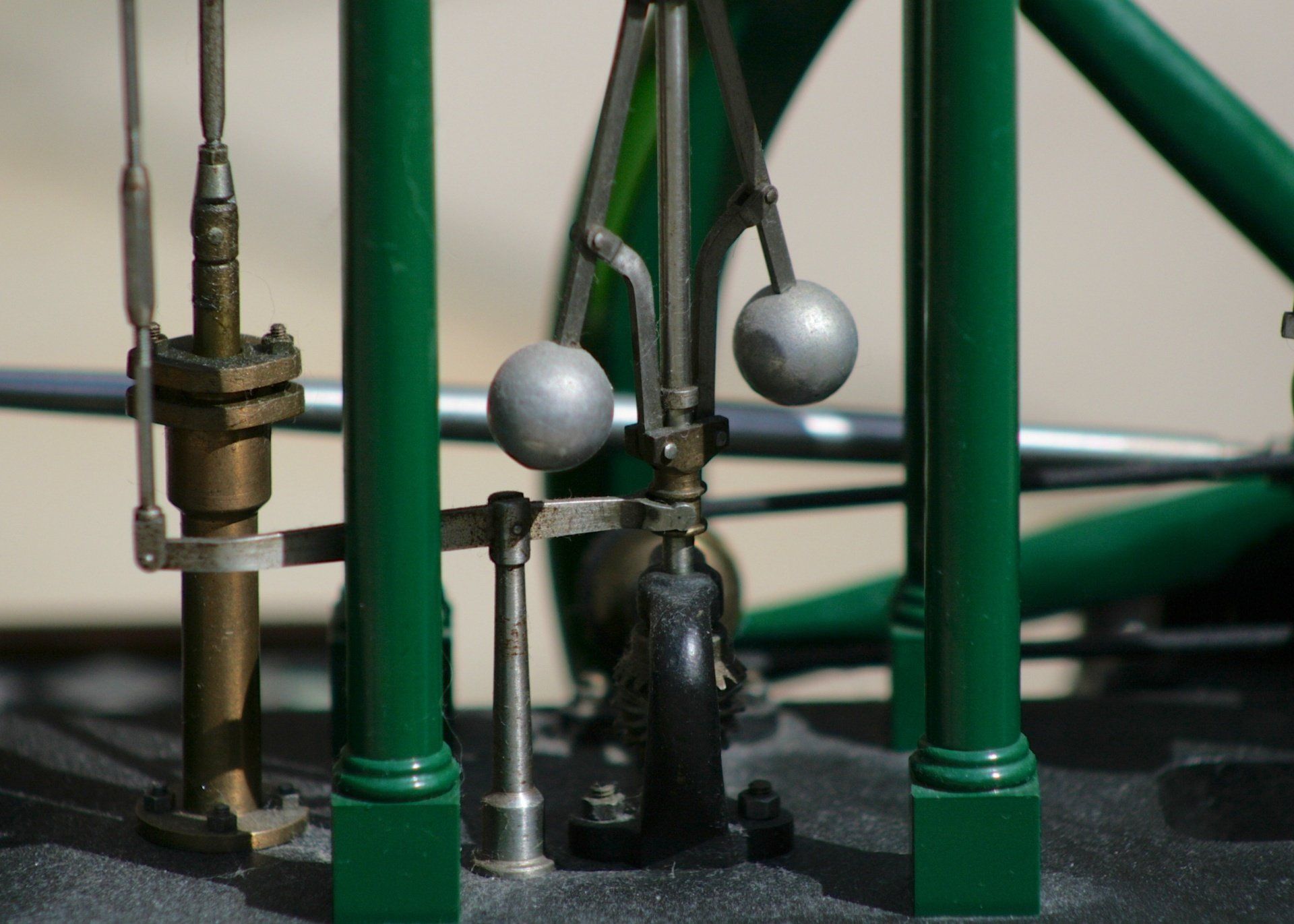

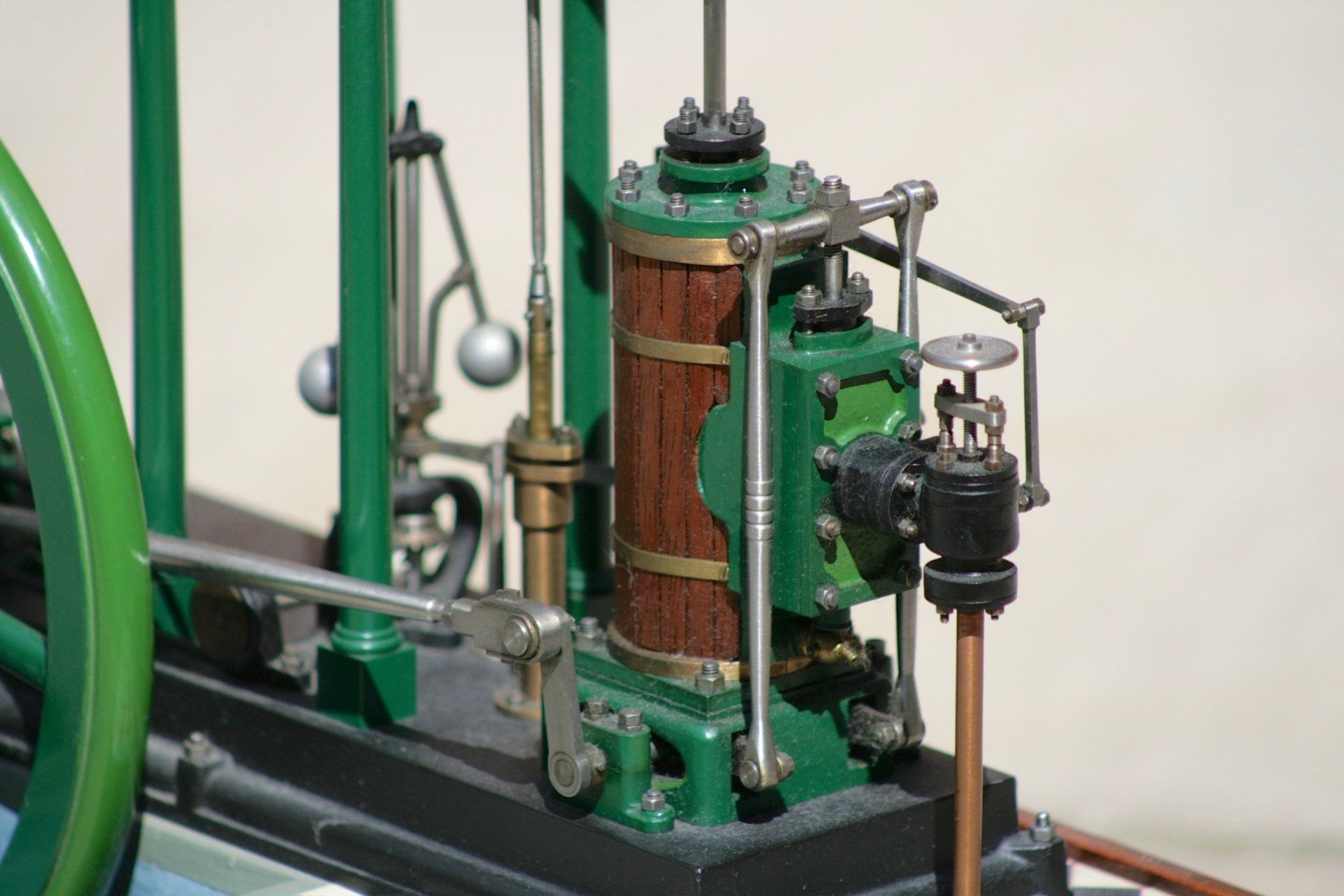

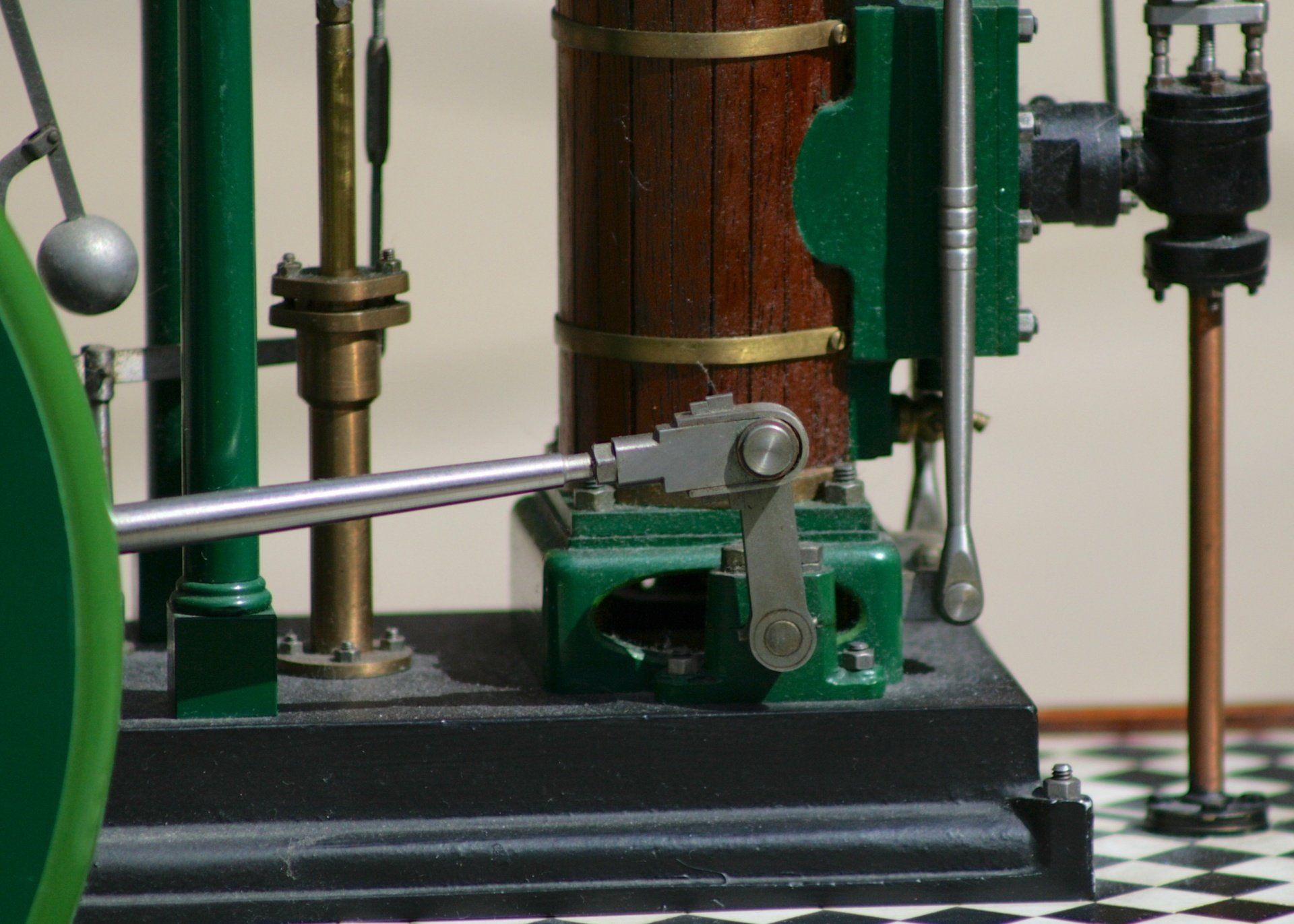

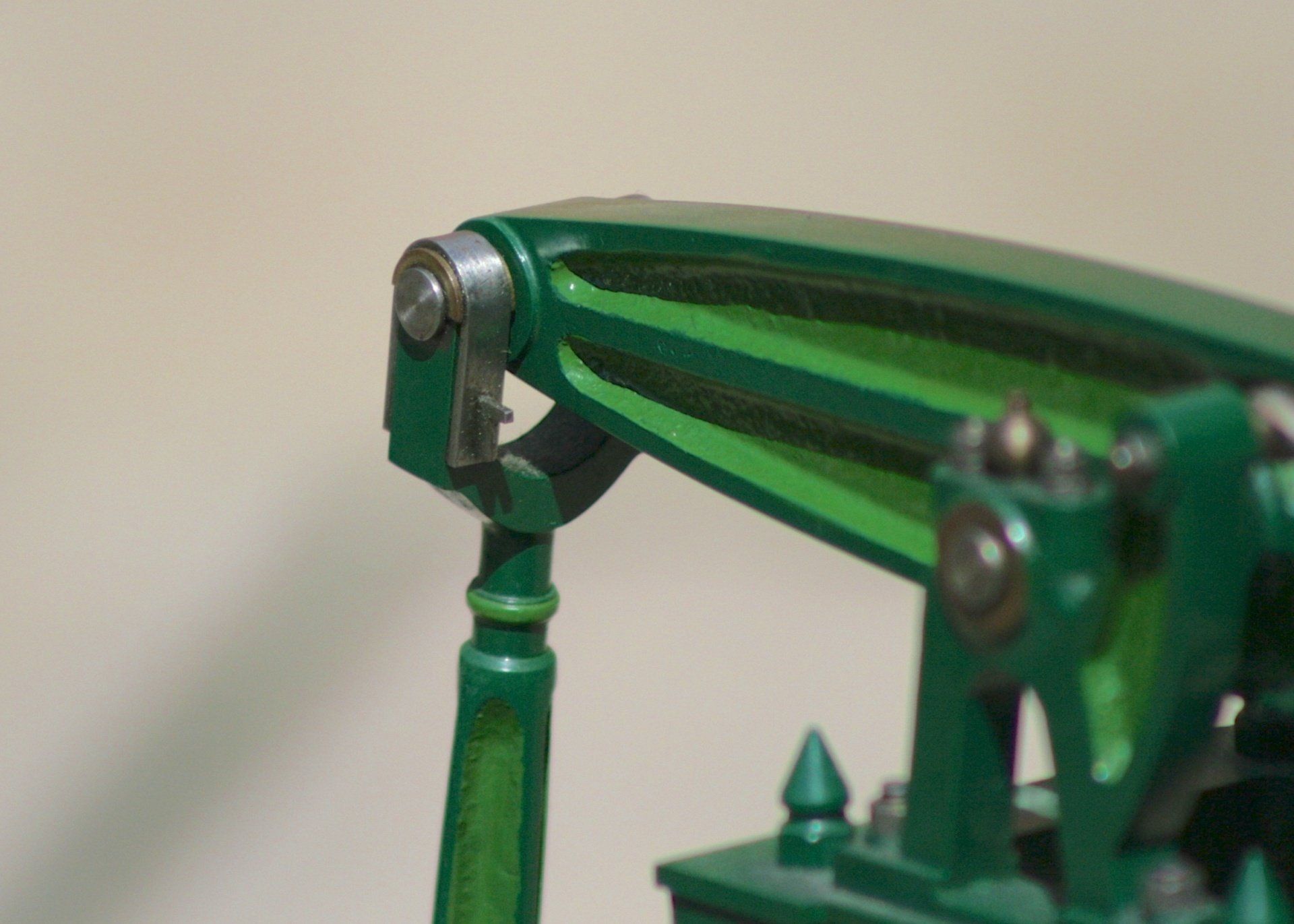

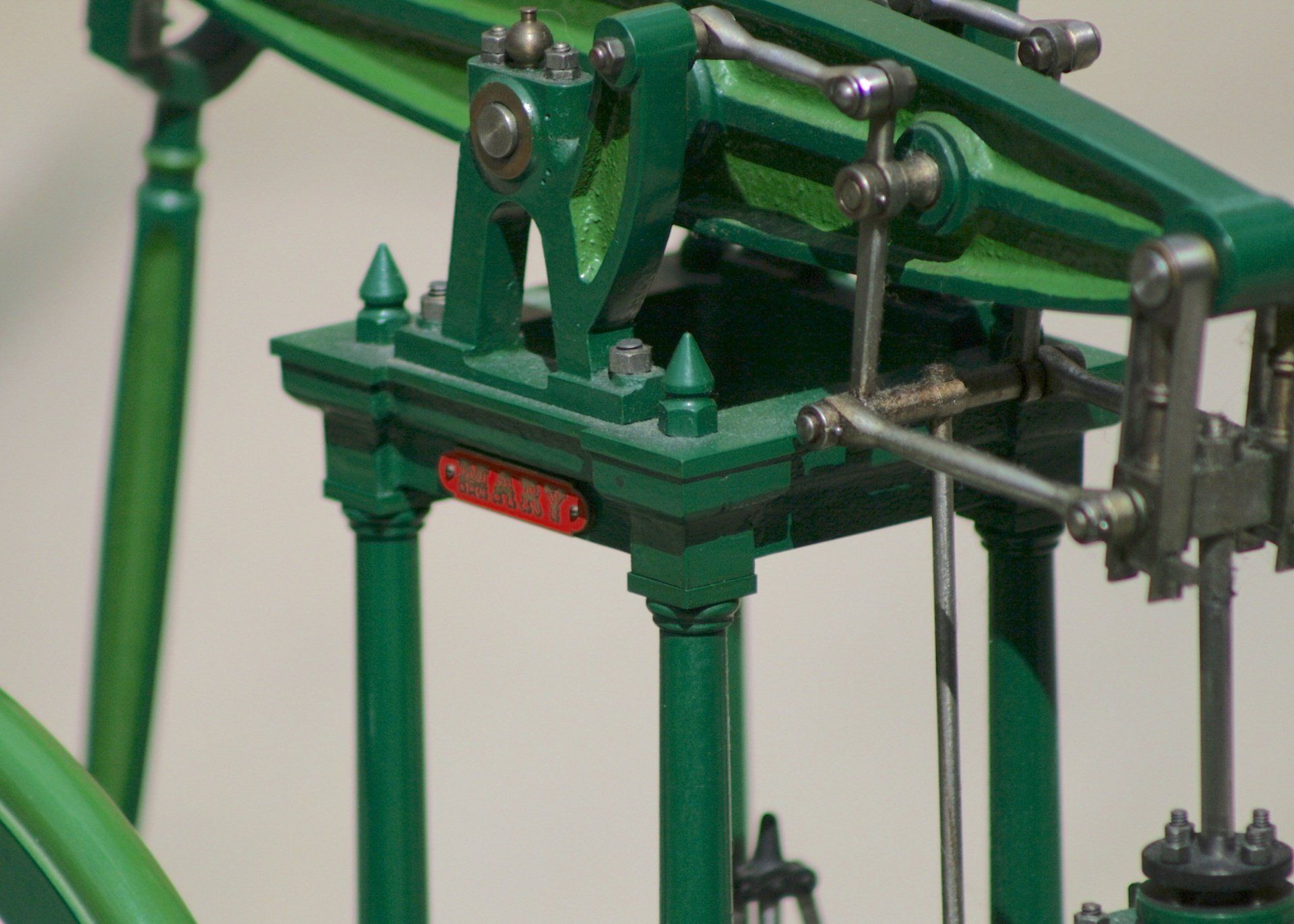

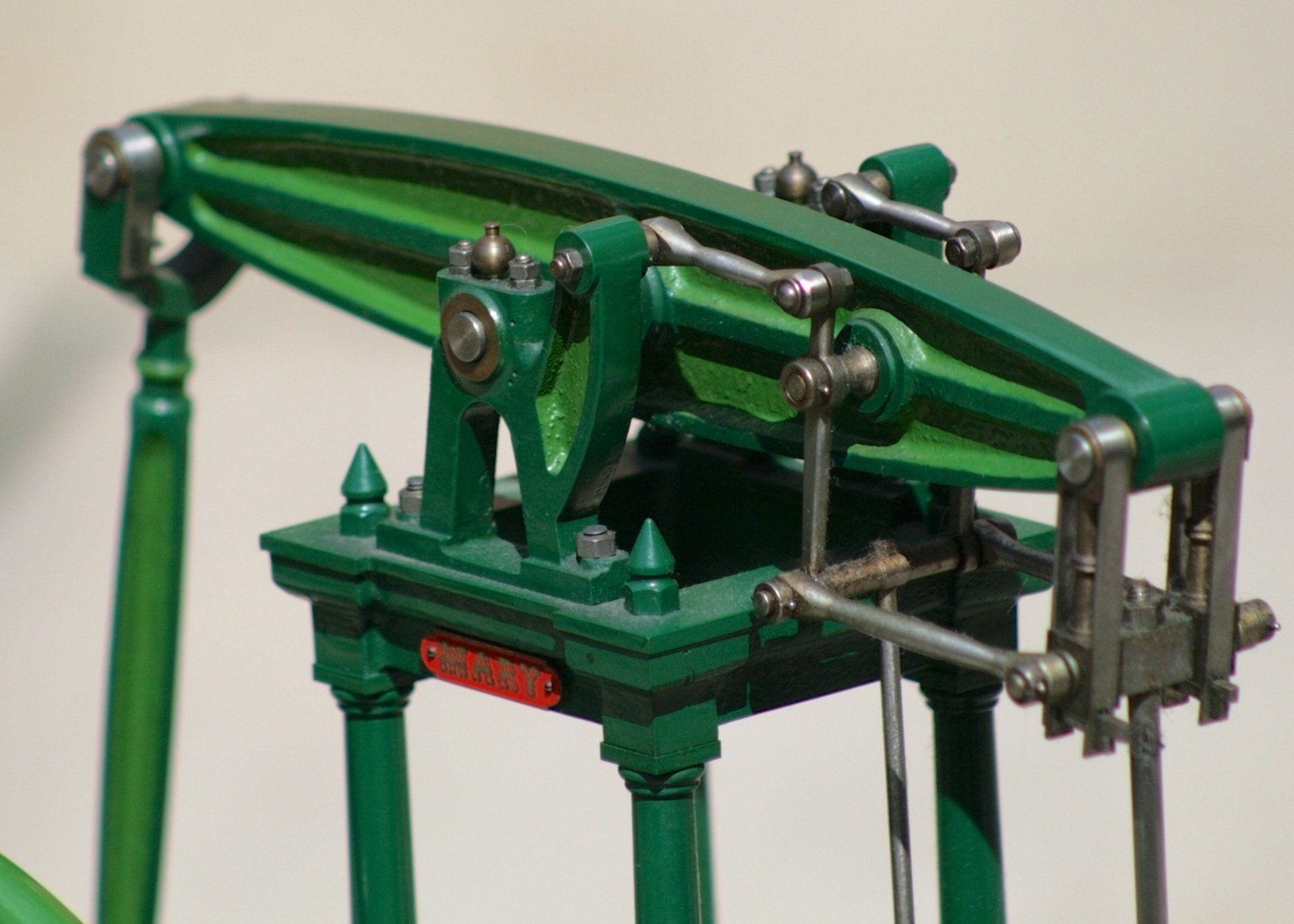

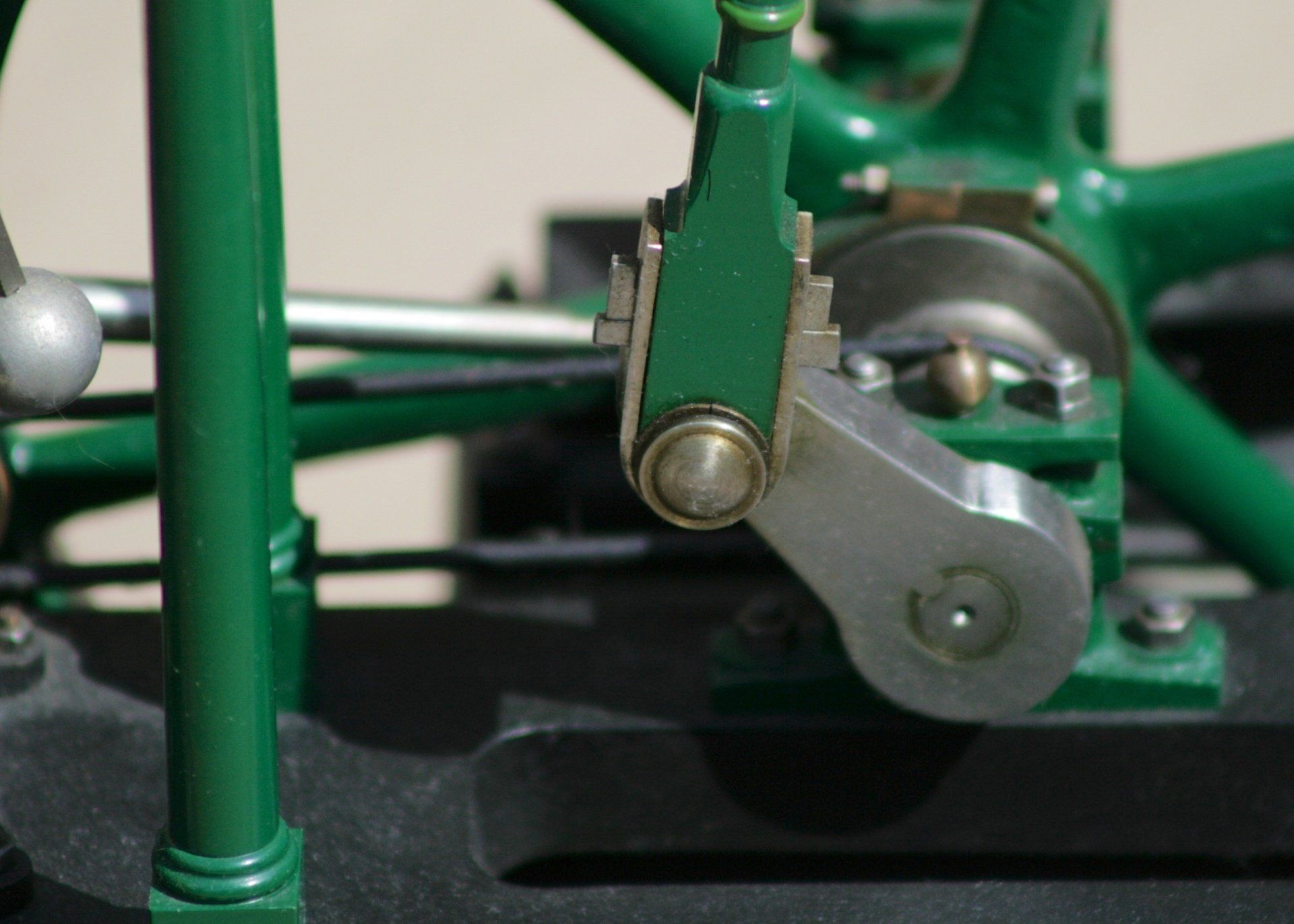

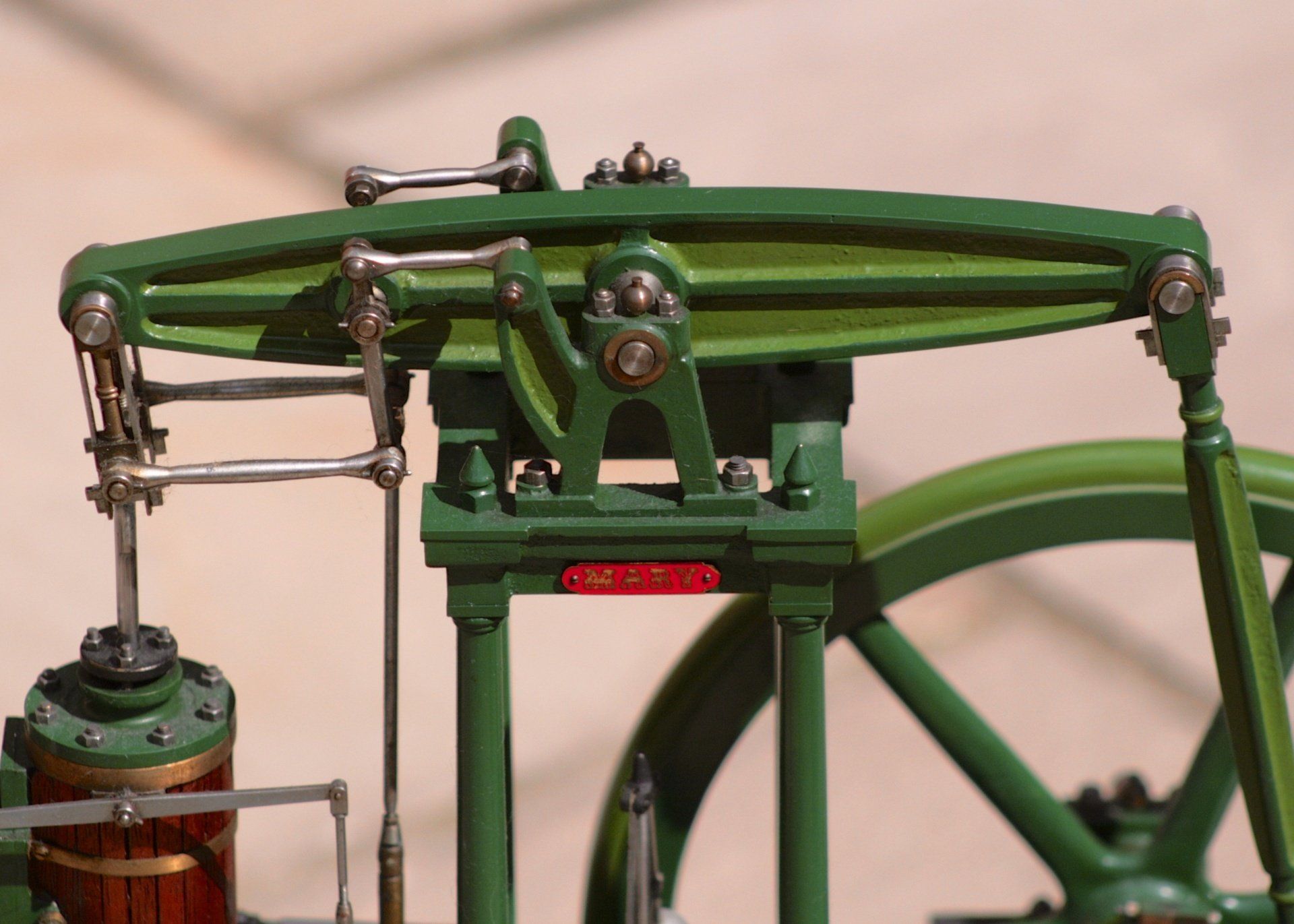

A four column beam engine with parallel motion,watt governor and stop valve.
Length 14.5 inches (368 mm)
Height 9 inches (228mm)
Width 6.5inches (165mm), Flywheel Diameter 91/4 inches (235mm)
Described by Tubal Cain in Model Engineer Vol 143

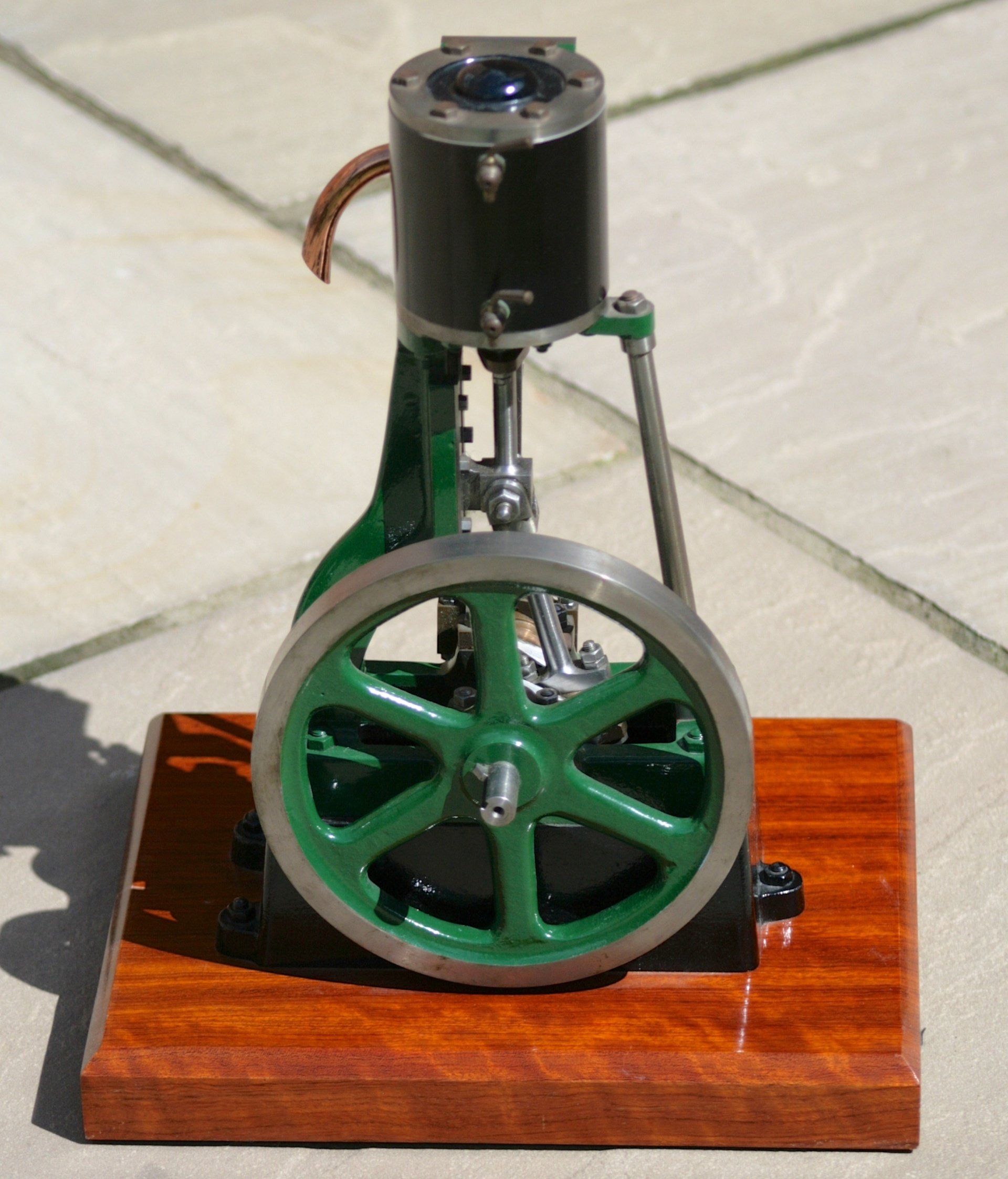

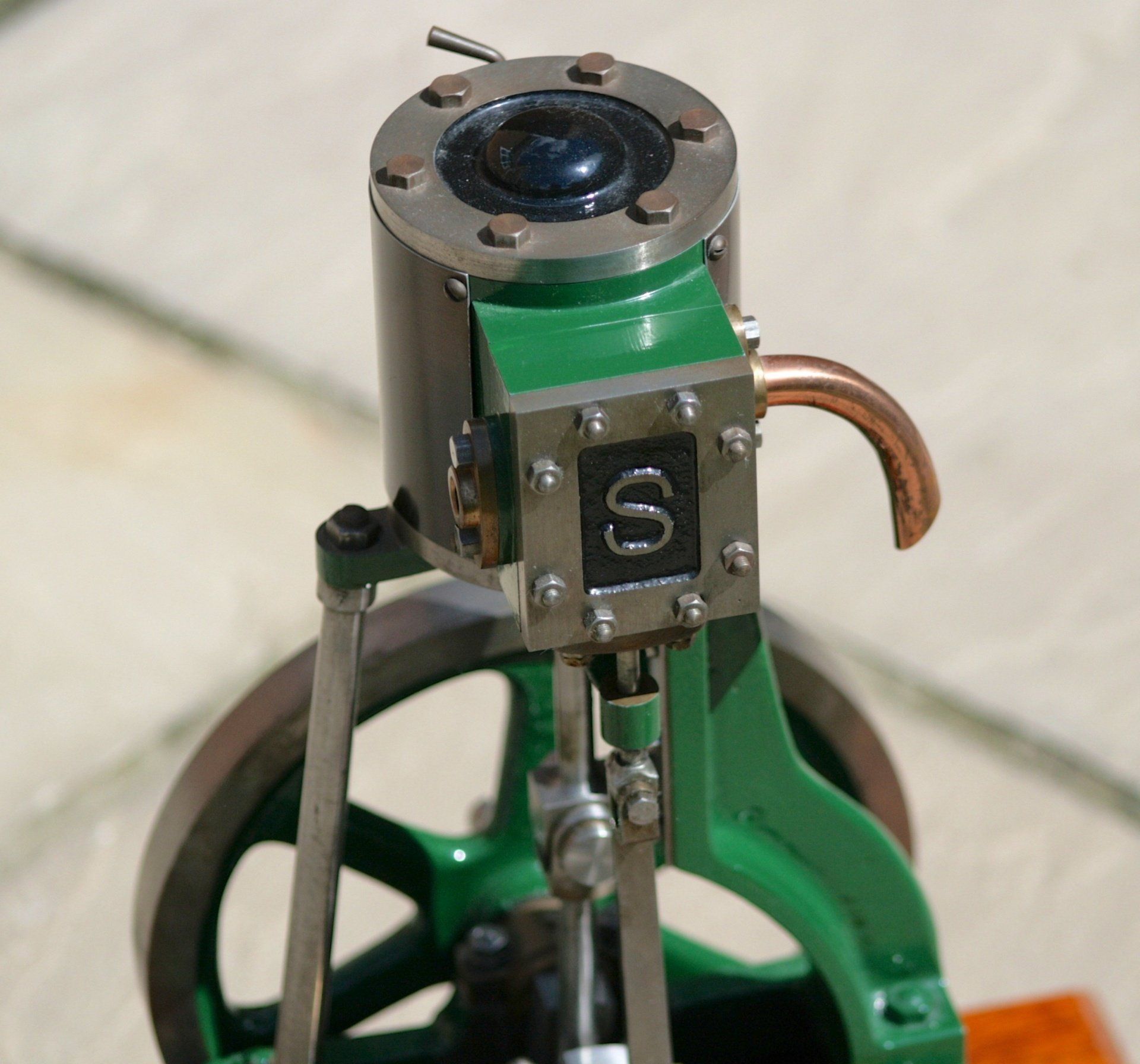

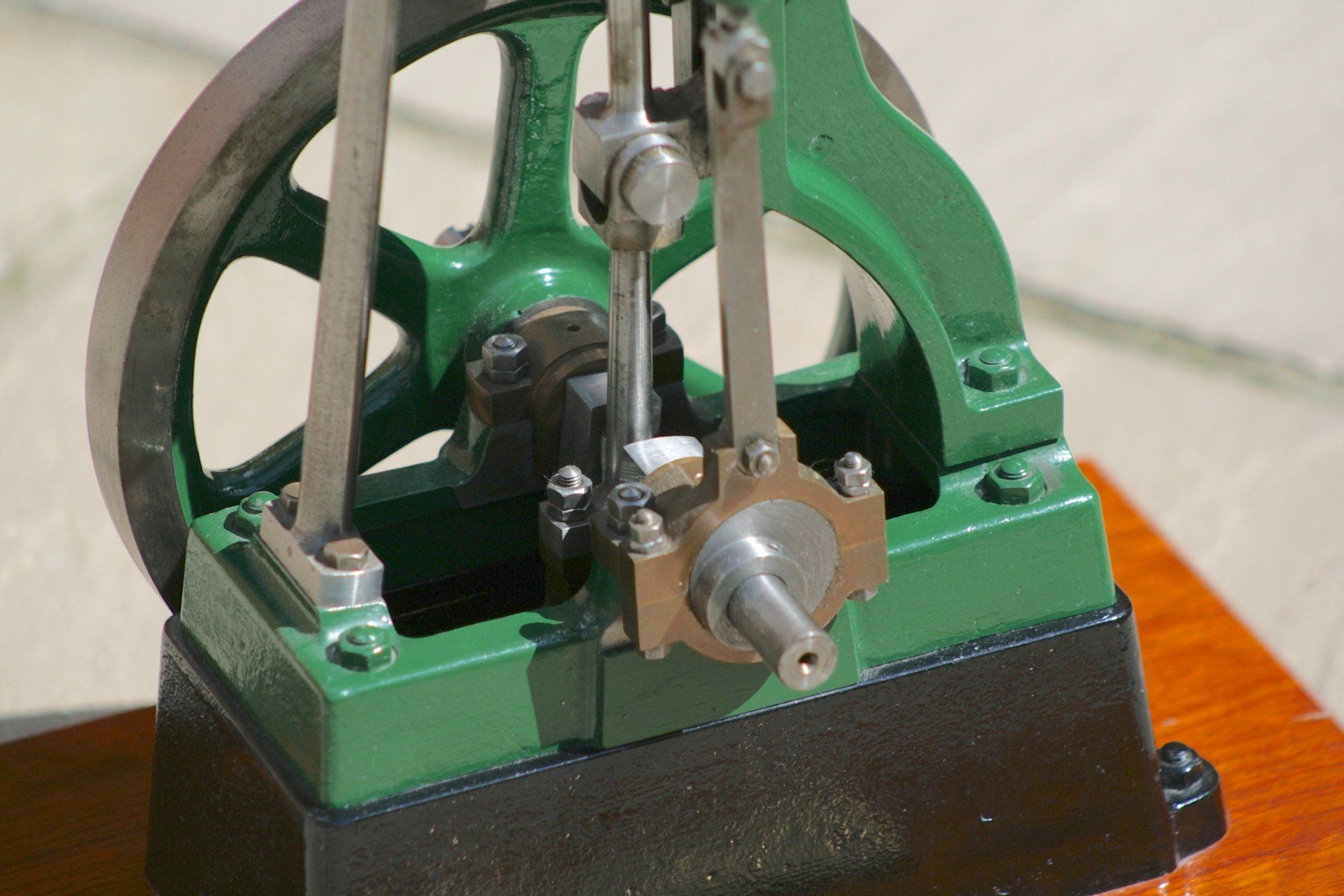

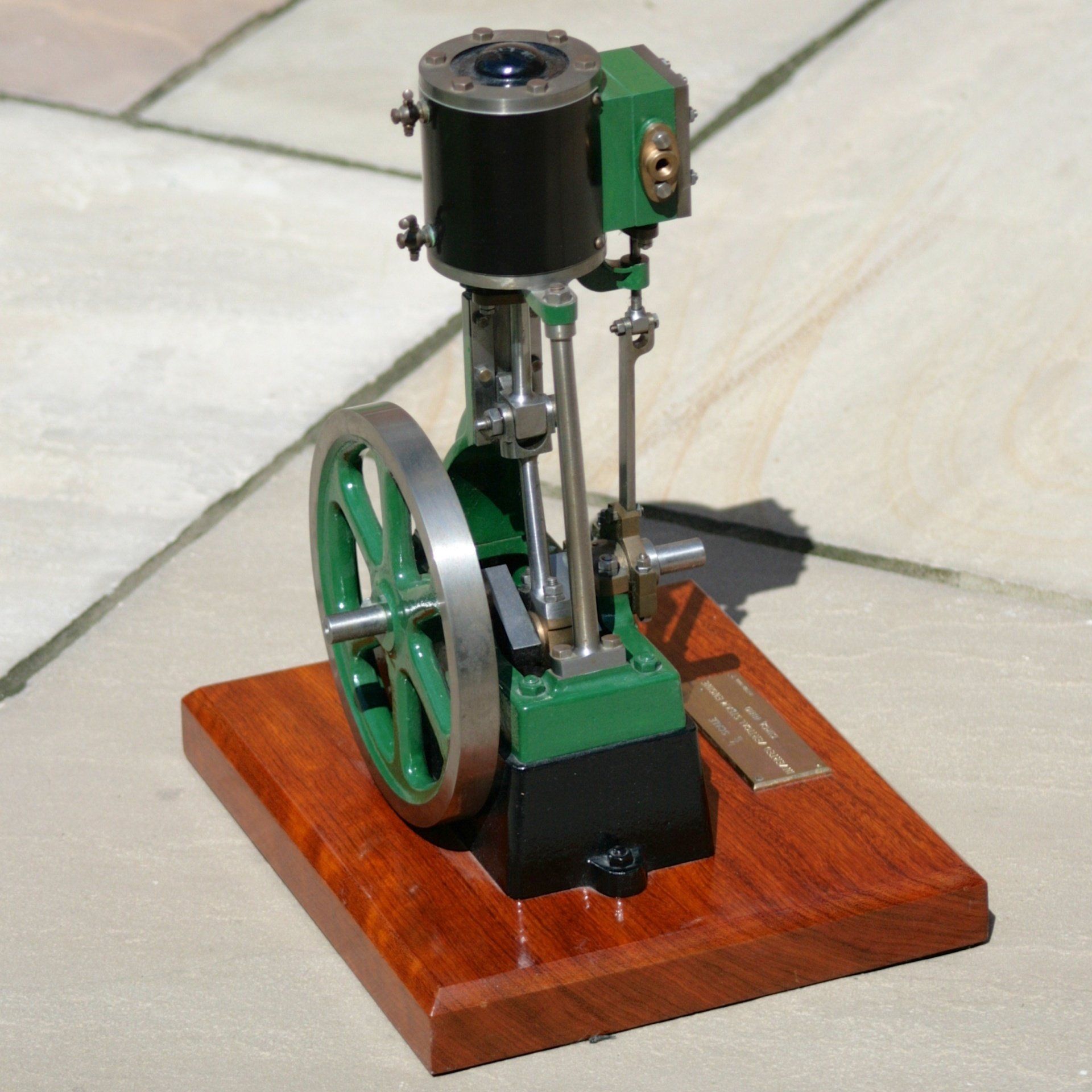

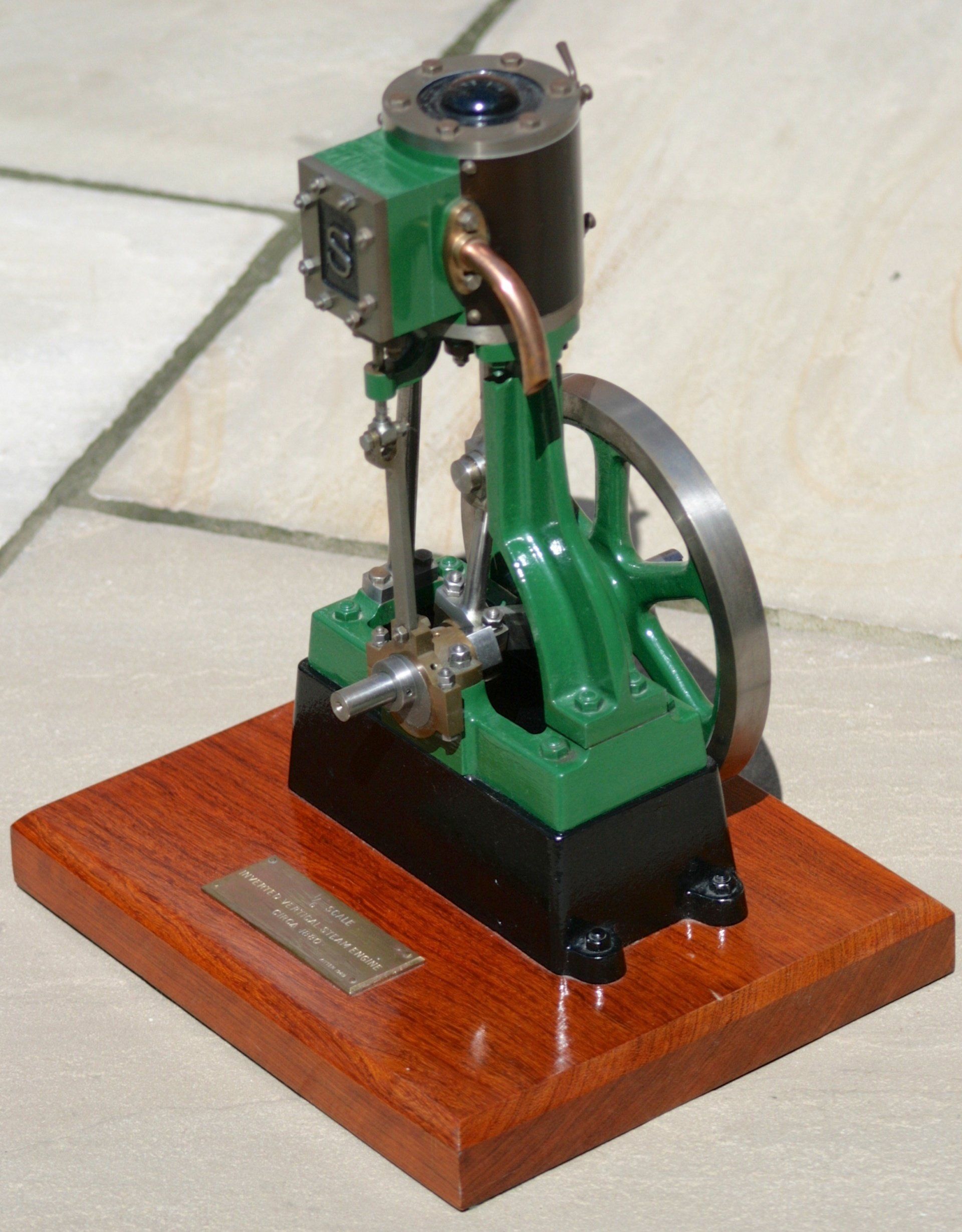

Stuart No 1
Height 13.5 inches (343mm)
Flywheel Diameter 71/4 inches (184mm)
Cylinder bore 2 inches (50mm)
Stroke 2 Inches (50mm)

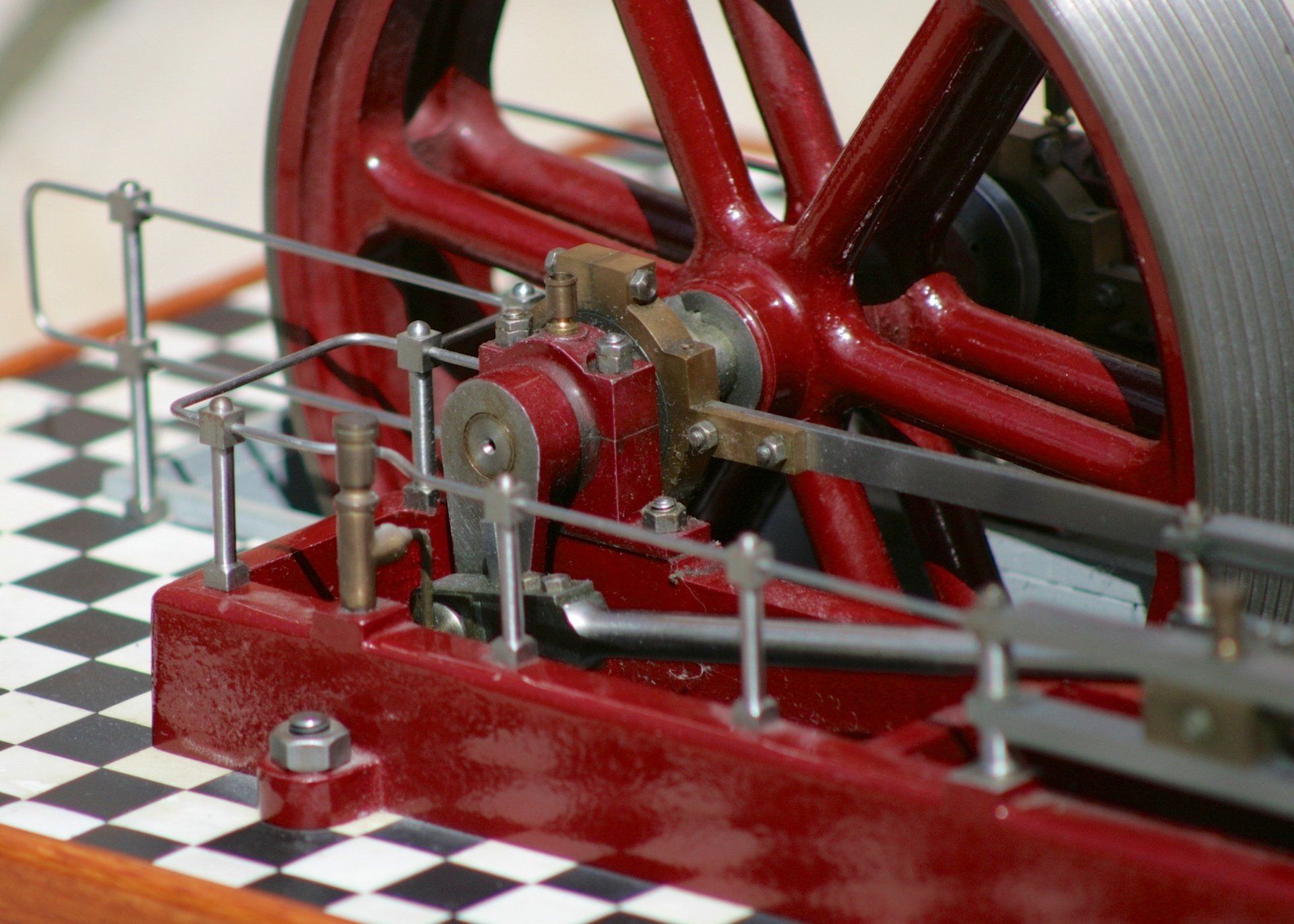

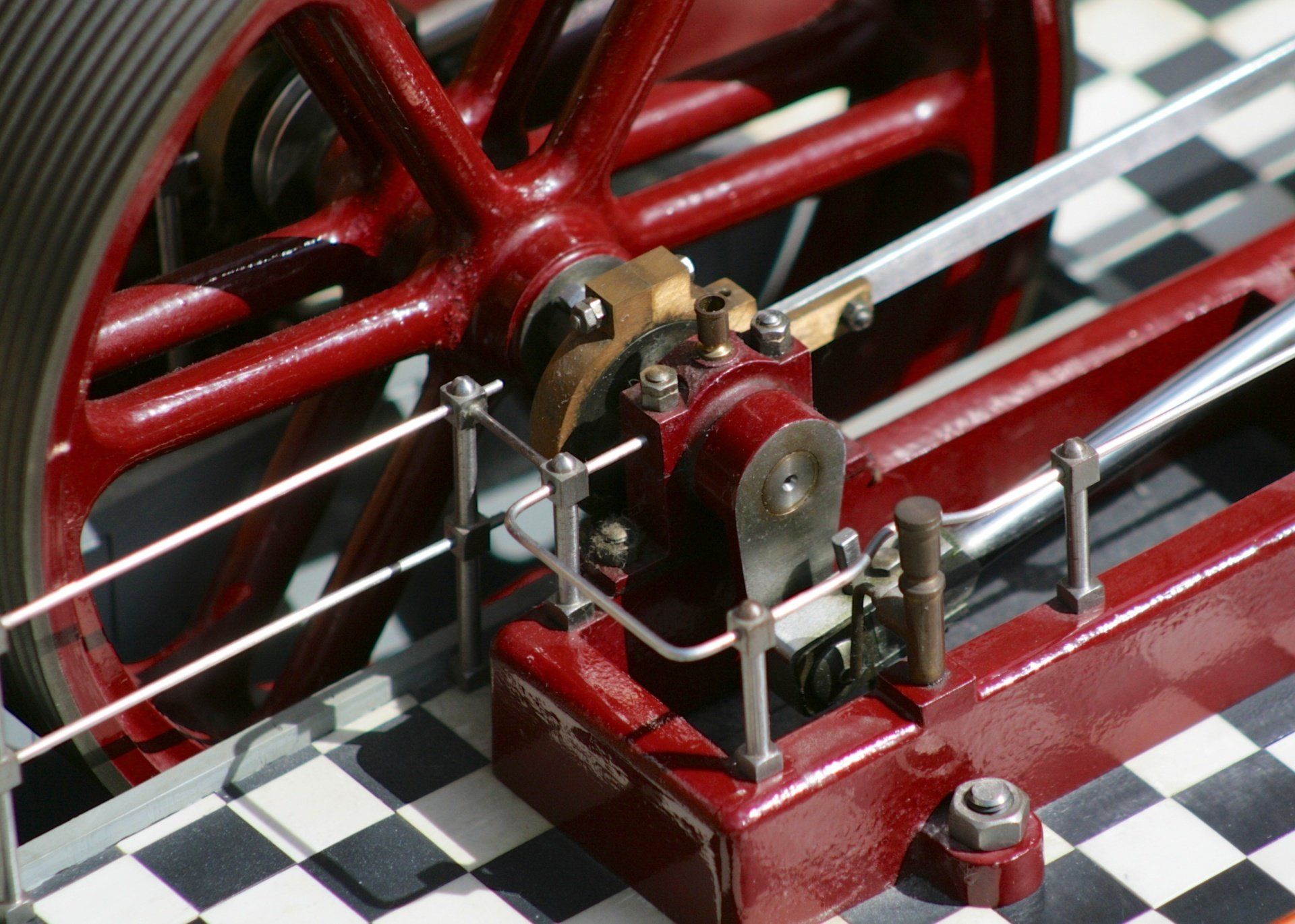

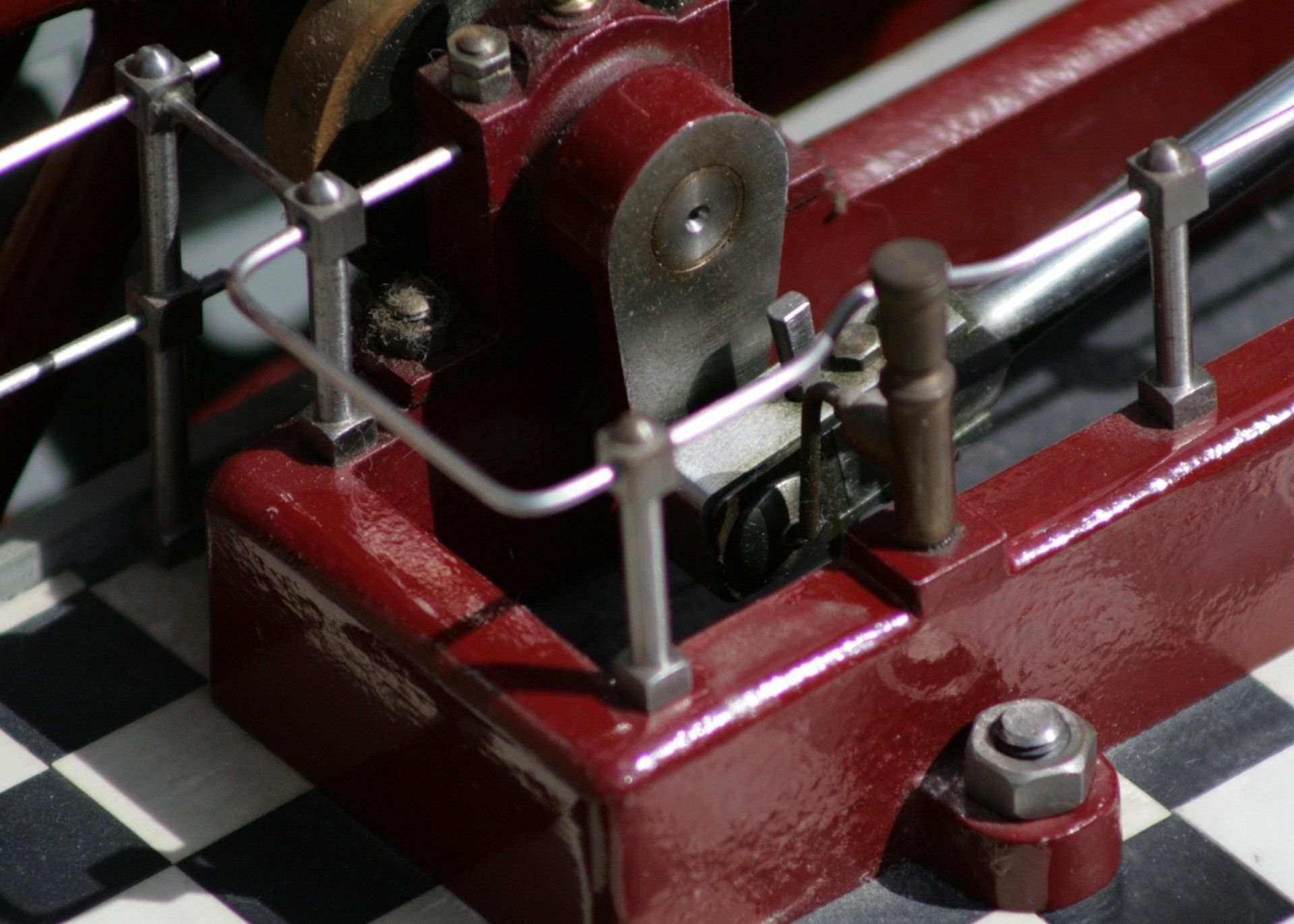

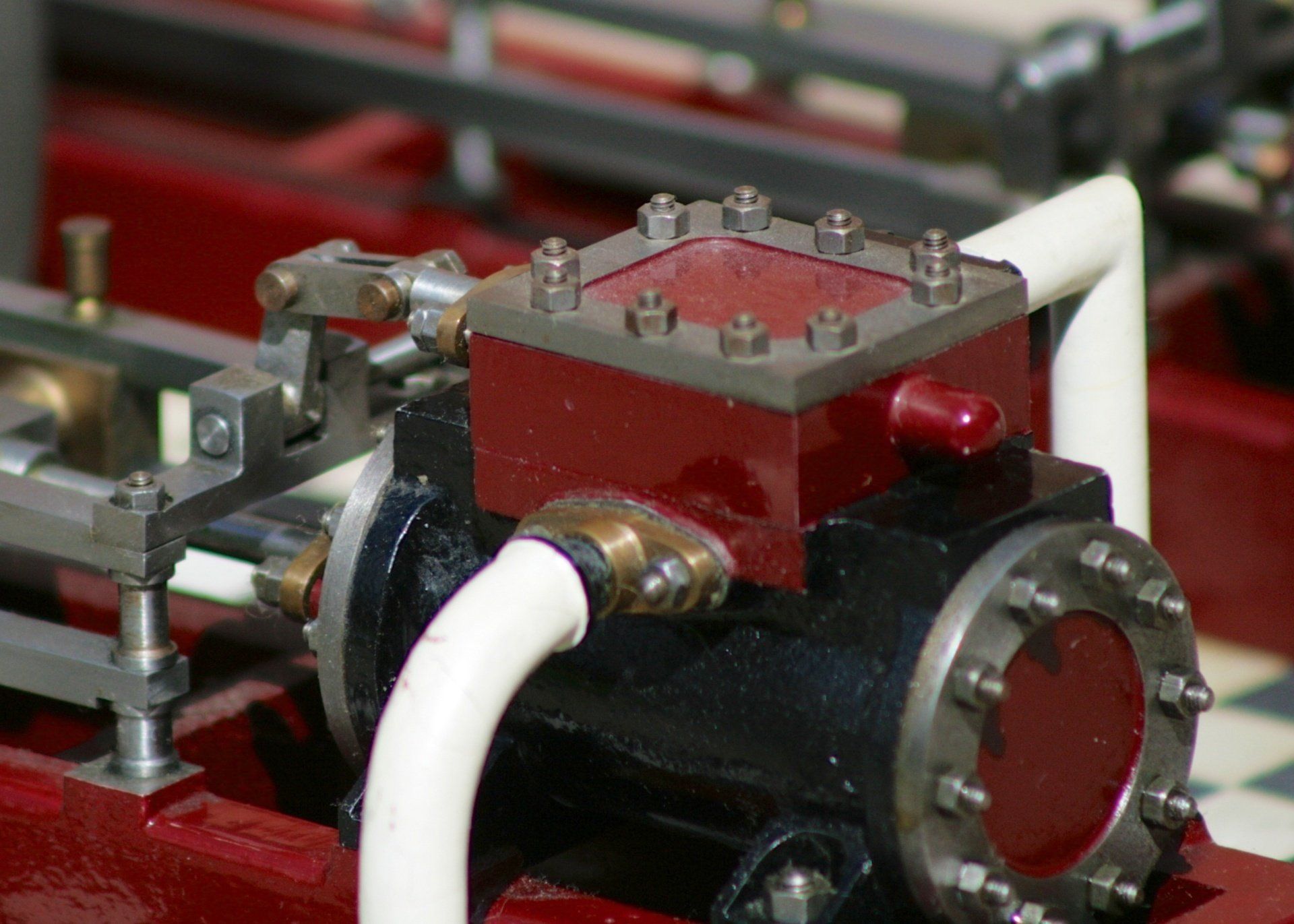

Stuart Twin Victoria Horizontal Engine
Length 15.5 inches (394mm)
Flywheel Diameter 7 inches (178mm)
Cylinder Bore 1 inch (25mm)
Cylinder Stroke 2 Inches (50mm)
A four column beam engine with parallel motion,watt governor and stop valve.
Stuart No 1
Stuart Twin Victoria Horizontal Engine
